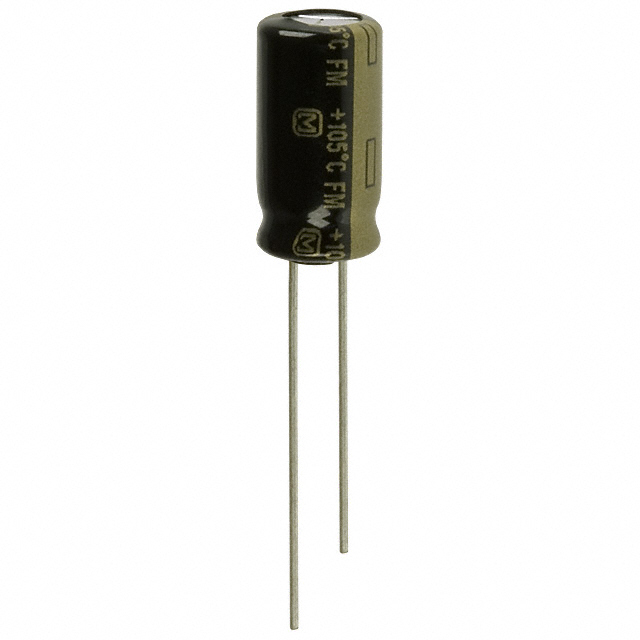

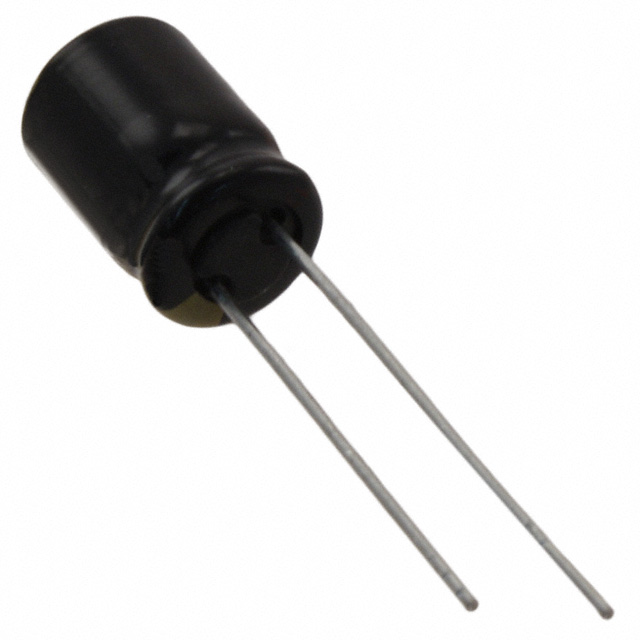

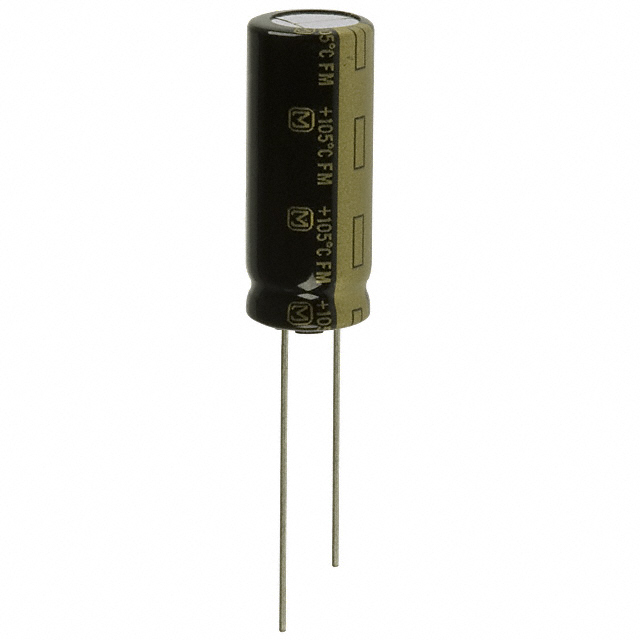

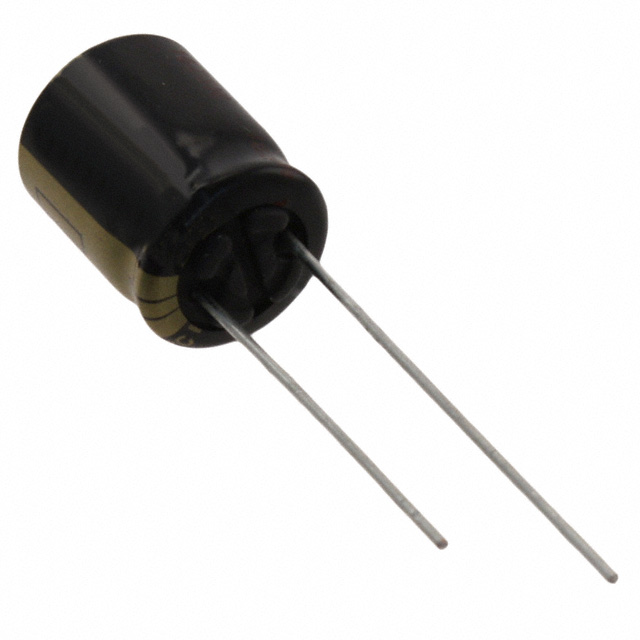

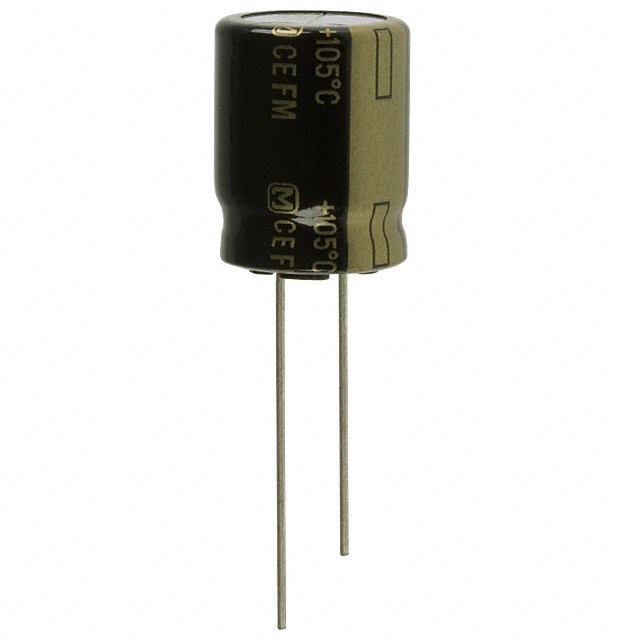

EEU-FM Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

Catalog

CAP ALUM 470UF 20% 16V RADIAL TH

...

Part	Package / Case	Applications	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Ripple Current @ Low Frequency	Impedance	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Polarization	Tolerance	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Ripple Current @ High Frequency
Panasonic Industrial Automation Sales EEU-FM1C471LBJ	Radial Can	General Purpose	5 mm	0.197 in	-40 °C	105 ░C	16 V	16.5 mm	16.51 mm	470 µF	930 mA	41 mOhms	0.315 "	8 mm	3000 Hrs	Polar	20 %	Through Hole
Panasonic Industrial Automation Sales EEU-FM1V221B	Radial Can	General Purpose	5 mm	0.197 in	-40 °C	105 ░C	35 V			220 µF		38 mOhms	0.394 in	10 mm	4000 Hrs	Polar	20 %	Through Hole	14 mm	0.551 "	1.29 A
Panasonic Industrial Automation Sales EEU-FM1C681L	Radial Can	General Purpose	3.5 mm	0.138 in	-40 °C	105 ░C	16 V	22 mm	0.866 in	680 µF	1.17 A	30 mOhms	0.315 "	8 mm	4000 Hrs	Polar	20 %	Through Hole			1.56 A
Panasonic Industrial Automation Sales EEU-FM0J222LB	Radial Can	General Purpose	5 mm	0.197 in	-40 °C	105 ░C	6.3 V	27 mm	1.063 in	2200 µF		18 mOhms	0.394 in	10 mm	5000 Hrs	Polar	20 %	Through Hole			2.47 A
Panasonic Industrial Automation Sales EEU-FM1A392SB	Radial Can	General Purpose	7.5 mm	0.295 in	-40 °C	105 ░C	10 V	22 mm	0.866 in	3900 µF	2.64 A	17 mOhms	0.63 in	16 mm	5000 Hrs	Polar	20 %	Through Hole			3.3 A
Panasonic Industrial Automation Sales EEU-FM1E331L	Radial Can	General Purpose	3.5 mm	0.138 in	-40 °C	105 ░C	25 VDC	16.5 mm	16.51 mm	330 µF		41 mOhms	0.315 "	8 mm	3000 Hrs	Polar	20 %	Through Hole
Panasonic Industrial Automation Sales EEU-FM1E821LB	Radial Can	General Purpose	5 mm	0.197 in	-40 °C	105 ░C	25 VDC	27 mm	1.063 in	820 µF	1.853 A	18 mOhms	0.394 in	10 mm	5000 Hrs	Polar	20 %	Through Hole			2.47 A
Panasonic Industrial Automation Sales EEU-FM1C471LB	Radial Can	General Purpose	5 mm	0.197 in	-40 °C	105 ░C	16 V	16.5 mm	16.51 mm	470 µF	930 mA	41 mOhms	0.315 "	8 mm	3000 Hrs	Polar	20 %	Through Hole
Panasonic Industrial Automation Sales EEU-FM1H331LB	Radial Can	General Purpose	5 mm	0.197 in	-40 °C	105 ░C	50 VDC	27 mm	1.063 in	330 µF	1.505 A	22 mOhms	0.394 in	10 mm	5000 Hrs	Polar	20 %	Through Hole			2.15 A
Panasonic Industrial Automation Sales EEU-FM1V680H	Radial Can	General Purpose	2.5 mm	0.098 in	-40 °C	105 ░C	35 V	12.7 mm	0.5 in	68 µF	318.5 mA	130 mOhms	0.248 in	6.3 mm	2000 Hrs	Polar	20 %	Through Hole			455 mA
