10056844 Series

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Shape	Connector Type	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Features	Style	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Material	Mounting Type	Shrouding	Number of Rows [custom]	Termination	Material Flammability Rating	Number of Positions	Contact Finish - Post	Contact Material	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Length - Mating	Contact Length - Mating	Number of Positions [custom]

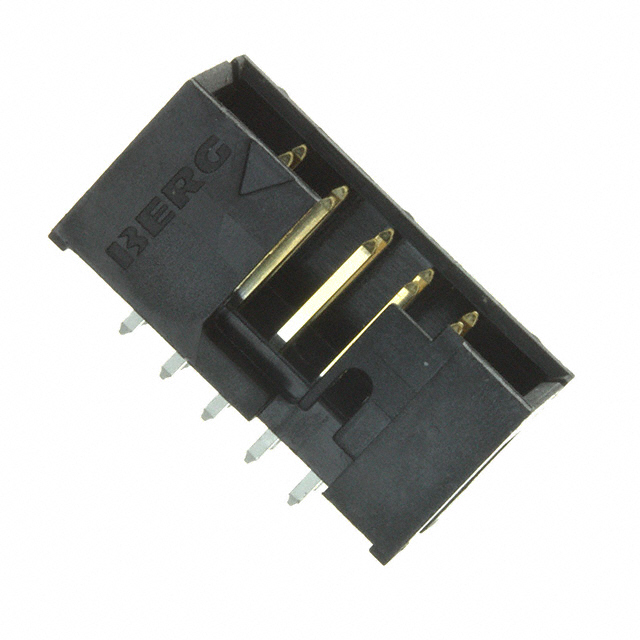

Amphenol ICC (FCI) 10056844-110LF	78.7 µin	2 µm	0.1 in	2.54 mm	Black	Square	Header	2 mm	0.079 in	All	Keying Slot	Board to Cable/Wire	0.1 "	2.54 mm	Male Pin	Thermoplastic	Through Hole	Shrouded - 4 Wall	2	Solder	UL94 V-0	10	Tin	Copper Alloy	9.3 mm	0.366 "	Gold GXT™	0.76 Ám	30 Áin	Push-Pull	6 mm	0.236 in
Amphenol ICC (FCI) 10056844-120ALF	78.7 µin	2 µm	0.1 in	2.54 mm	Black	Square	Header	2 mm	0.079 in	All	Keying Slot Pick and Place	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Thermoplastic	Through Hole	Shrouded - 4 Wall	2	Solder	UL94 V-0	20	Tin	Copper Alloy	9.3 mm	0.366 "	Gold GXT™	0.76 Ám	30 Áin	Push-Pull	6 mm	0.236 in

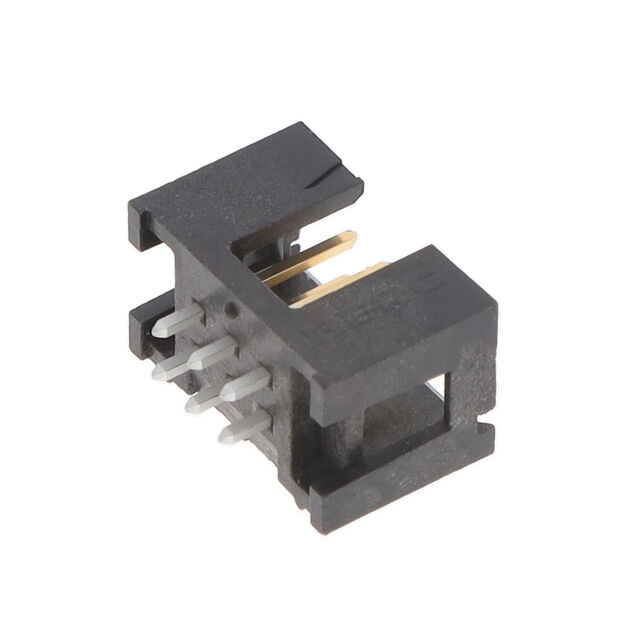

Amphenol ICC (FCI) 10056844-106ALF	78.7 µin	2 µm	0.1 in	2.54 mm	Black	Square	Header	2 mm	0.079 in	All	Keying Slot Pick and Place	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Thermoplastic	Through Hole	Shrouded - 4 Wall	2	Solder	UL94 V-0	6	Tin	Copper Alloy	9.3 mm	0.366 "	Gold GXT™	0.76 Ám	30 Áin	Push-Pull	6 mm	0.236 in
Amphenol ICC (FCI) 10056844-108LF	78.7 µin	2 µm	0.1 in	2.54 mm	Black	Square	Header	2 mm	0.079 in	All	Keying Slot	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Thermoplastic	Through Hole	Shrouded - 4 Wall	2	Solder	UL94 V-0	8	Tin	Copper Alloy	9.3 mm	0.366 "	Gold GXT™	0.76 Ám	30 Áin	Push-Pull	6 mm	0.236 in

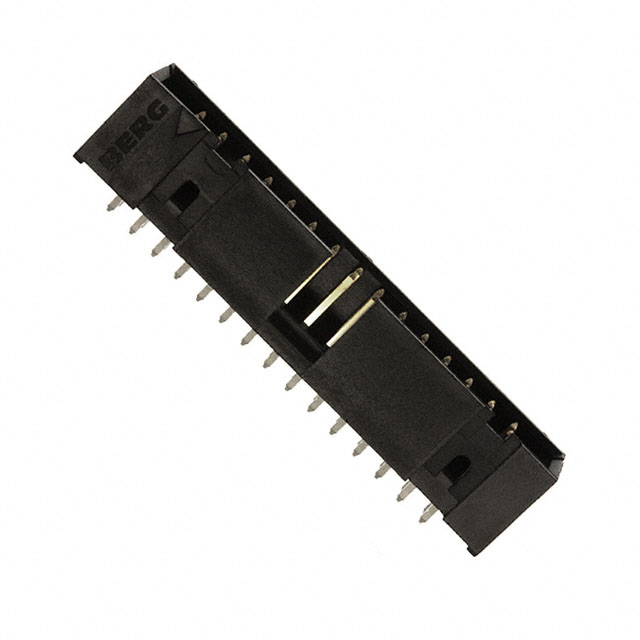

Amphenol ICC (FCI) 10056844-130LF	78.7 µin	2 µm	0.1 in	2.54 mm	Black	Square	Header	2 mm	0.079 in	All	Keying Slot	Board to Cable/Wire	0.1 "	2.54 mm	Male Pin	Thermoplastic	Through Hole	Shrouded - 4 Wall	2	Solder	UL94 V-0	30	Tin	Copper Alloy	9.3 mm	0.366 "	Gold GXT™	0.76 Ám	30 Áin	Push-Pull	6 mm	0.236 in
Amphenol ICC (FCI) 10056844-106LF	78.7 µin	2 µm	0.1 in	2.54 mm	Black	Square	Header	2 mm	0.079 in	All	Keying Slot	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Thermoplastic	Through Hole	Shrouded - 4 Wall	2	Solder	UL94 V-0	6	Tin	Copper Alloy	9.3 mm	0.366 "	Gold GXT™	0.76 Ám	30 Áin	Push-Pull	6 mm	0.236 in

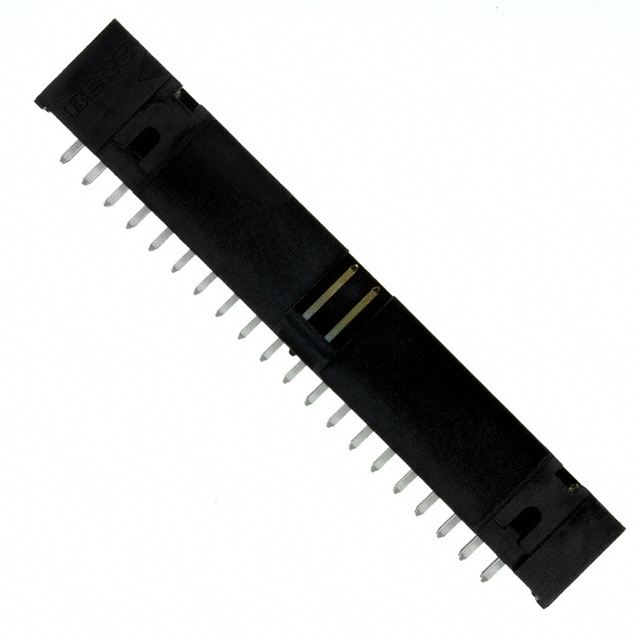

Amphenol ICC (FCI) 10056844-140LF	78.7 µin	2 µm	0.1 in	2.54 mm	Black	Square	Header	2 mm	0.079 in	All	Keying Slot	Board to Cable/Wire	0.1 "	2.54 mm	Male Pin	Thermoplastic	Through Hole	Shrouded - 4 Wall	2	Solder	UL94 V-0	40	Tin	Copper Alloy	9.3 mm	0.366 "	Gold GXT™	0.76 Ám	30 Áin	Push-Pull	6 mm	0.236 in

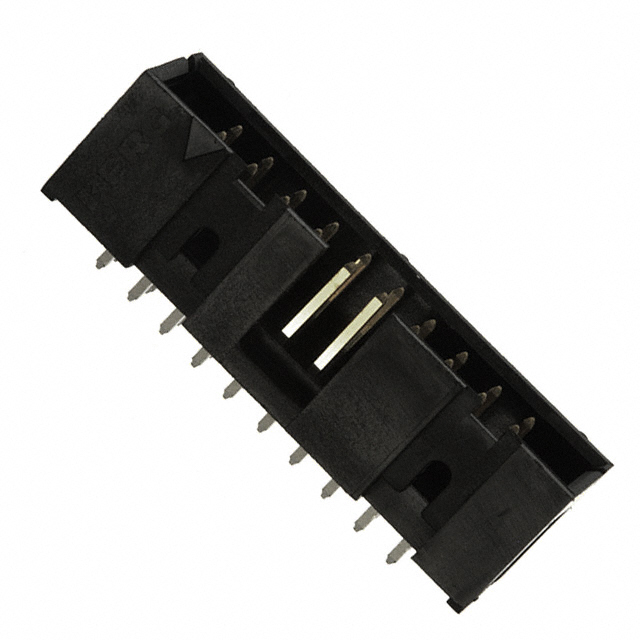

Amphenol ICC (FCI) 10056844-120LF	78.7 µin	2 µm	0.1 in	2.54 mm	Black	Square	Header	2 mm	0.079 in	All	Keying Slot	Board to Cable/Wire	0.1 "	2.54 mm	Male Pin	Thermoplastic	Through Hole	Shrouded - 4 Wall	2	Solder	UL94 V-0	20	Tin	Copper Alloy	9.3 mm	0.366 "	Gold GXT™	0.76 Ám	30 Áin	Push-Pull	6 mm	0.236 in
Amphenol ICC (FCI) 10056844-134ALF	78.7 µin	2 µm	0.1 in	2.54 mm	Black	Square	Header	2 mm	0.079 in	All	Keying Slot Pick and Place	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Thermoplastic	Through Hole	Shrouded - 4 Wall	2	Solder	UL94 V-0		Tin	Copper Alloy	9.3 mm	0.366 "	Gold GXT™	0.76 Ám	30 Áin	Push-Pull	6 mm	0.236 in	34
Amphenol ICC (FCI) 10056844-108ALF	78.7 µin	2 µm	0.1 in	2.54 mm	Black	Square	Header	2 mm	0.079 in	All	Keying Slot Pick and Place	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Thermoplastic	Through Hole	Shrouded - 4 Wall	2	Solder	UL94 V-0	8	Tin	Copper Alloy	9.3 mm	0.366 "	Gold GXT™	0.76 Ám	30 Áin	Push-Pull	6 mm	0.236 in
