A171A Series

Catalog

RELAY AUTOMOTIVE SPST 30A 24V

Part	Coil Resistance	Contact Material	Coil Power	Coil Type	Contact Form	Termination Style	Features	Must Release Voltage	Contact Rating (Current)	Coil Voltage	Must Operate Voltage	Mounting Type	Operate Time	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage [Max]	Release Time
CIT Relay and Switch A171AHS24VDC.96D	600 Ohms	Silver Tin Oxide (AgSnO)	960 mW	Non Latching	SPST-NO (1 Form A)	PC Pin	Diode Sealed - Fully	2.4 VDC	30 A	24 VDC	18 VDC	Through Hole	10 ms	40 mA	85 °C	-40 C	75 VDC	5 ms
CIT Relay and Switch A171AS12VDC.96	150 Ohms	Silver Tin Oxide (AgSnO)	960 mW	Non Latching	SPST-NO (1 Form A)	PC Pin	Sealed - Fully	1.2 VDC	30 A	12 VDC	9 VDC	Through Hole	10 ms	80 mA	85 °C	-40 C	75 VDC	5 ms

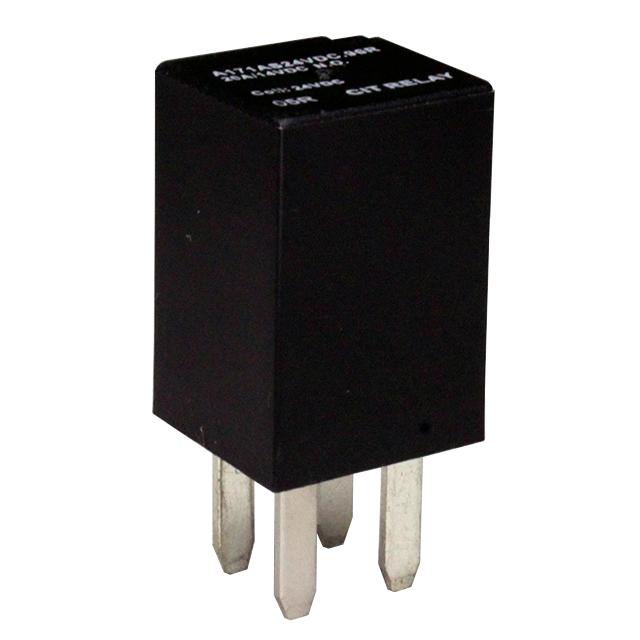

CIT Relay and Switch A171AHS12VDC.96R	150 Ohms	Silver Tin Oxide (AgSnO)	960 mW	Non Latching	SPST-NO (1 Form A)	PC Pin	Resistor Sealed - Fully	1.2 VDC	30 A	12 VDC	9 VDC	Through Hole	10 ms	80 mA	85 °C	-40 C	75 VDC	5 ms
CIT Relay and Switch A171AS24VDC.96	600 Ohms	Silver Tin Oxide (AgSnO)	960 mW	Non Latching	SPST-NO (1 Form A)	PC Pin	Sealed - Fully	2.4 VDC	30 A	24 VDC	18 VDC	Through Hole	10 ms	40 mA	85 °C	-40 C	75 VDC	5 ms
CIT Relay and Switch A171AS24VDC.96D	600 Ohms	Silver Tin Oxide (AgSnO)	960 mW	Non Latching	SPST-NO (1 Form A)	PC Pin	Diode Sealed - Fully	2.4 VDC	30 A	24 VDC	18 VDC	Through Hole	10 ms	40 mA	85 °C	-40 C	75 VDC	5 ms
CIT Relay and Switch A171AHS24VDC.96R	600 Ohms	Silver Tin Oxide (AgSnO)	960 mW	Non Latching	SPST-NO (1 Form A)	PC Pin	Resistor Sealed - Fully	2.4 VDC	30 A	24 VDC	18 VDC	Through Hole	10 ms	40 mA	85 °C	-40 C	75 VDC	5 ms
