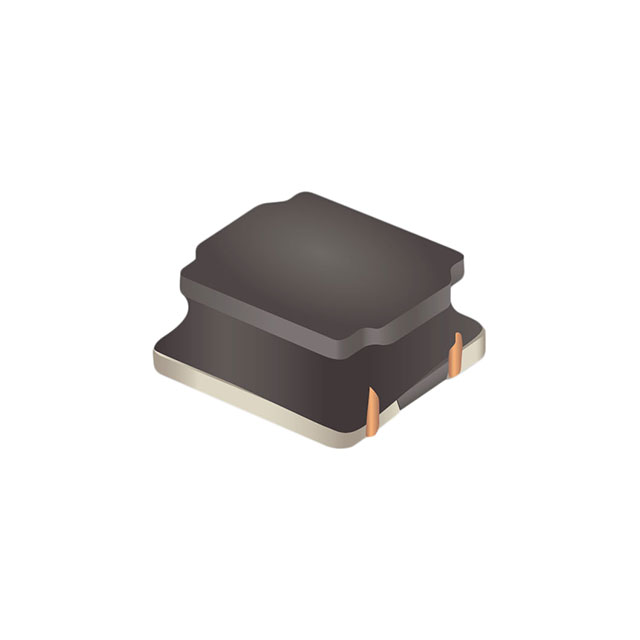

SRN3015TA Series
Manufacturer: Bourns Inc.
Beta
⌘K
POWER INDUCTOR (SMD), 1 ΜH, 2.2 A, SEMISHIELDED, 2 A, SRN3015TA SERIES
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) | Ratings | Current Rating (Amps) | Current - Saturation (Isat) | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Package / Case | Frequency - Self Resonant | Shielding | Type | DC Resistance (DCR) | Q @ Freq | Operating Temperature [Max] | Operating Temperature [Min] | Material - Core | Inductance | Inductance Frequency - Test | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.059 " | 1.5 mm | AEC-Q200 | 2.2 A | 2.2 A | 30 % | 3 mm | 0.118 in | 3 mm | 0.118 " | 3030 Metric | 1212 | 100 MHz | Shielded | Drum Core Wirewound | 30 mOhm | 12 100 kHz | 125 °C | -40 C | Ferrite | 1 µH | 100 kHz | Surface Mount |
Bourns Inc. | 0.059 " | 1.5 mm | AEC-Q200 | 700 mA | 0.65 A | 20 % | 3 mm | 0.118 in | 3 mm | 0.118 " | 3030 Metric | 1212 | 23 MHz | Shielded | Drum Core Wirewound | 320 mOhm | 12 100 kHz | 125 °C | -40 C | Ferrite | 15 µH | 100 kHz | Surface Mount |
 Bourns Inc. | 0.059 " | 1.5 mm | AEC-Q200 | 2 A | 2 A | 30 % | 3 mm | 0.118 in | 3 mm | 0.118 " | 3030 Metric | 1212 | 87 MHz | Shielded | Drum Core Wirewound | 40 mOhm | 12 100 kHz | 125 °C | -40 C | Ferrite | 1.5 µH | 100 kHz | Surface Mount |
