TAS5731M Series

20-W stereo, 41-W mono, 8- to 21.5-V, digital input open loop Class-D audio amplifier w/ 2.1 support

Catalog

20-W stereo, 41-W mono, 8- to 21.5-V, digital input open loop Class-D audio amplifier w/ 2.1 support

Part	Max Output Power x Channels @ Load	Supplier Device Package	Mounting Type	Output Type	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Type	Features

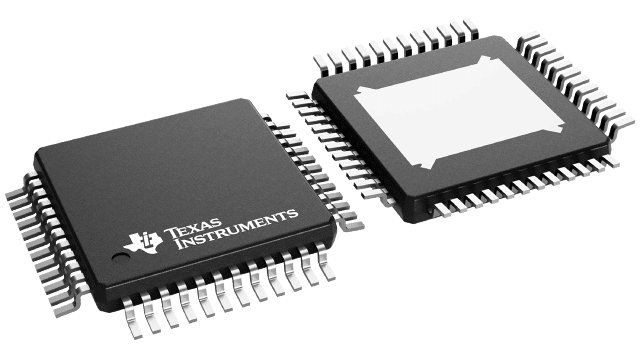

Texas Instruments TAS5731MPHP	37.2 W 69.6 W	48-HTQFP (7x7)	Surface Mount	1-Channel (Mono) or 2-Channel (Stereo)	85 C	3 V 8 V	3.6 V 26.4 V	48-PowerTQFP	Class D	Depop Digital Inputs I2C I2S Mute Short-Circuit and Thermal Protection Volume Control
Texas Instruments TAS5731PHPR	20.9 W 41.5 W	48-HTQFP (7x7)	Surface Mount	1-Channel (Mono) or 2-Channel (Stereo)	85 C	3 V 8 V	3.6 V 21.5 V	48-PowerTQFP	Class D	Depop Digital Inputs I2C I2S Mute Short-Circuit and Thermal Protection Volume Control
Texas Instruments TAS5731PHP	20.9 W 41.5 W	48-HTQFP (7x7)	Surface Mount	1-Channel (Mono) or 2-Channel (Stereo)	85 C	3 V 8 V	3.6 V 21.5 V	48-PowerTQFP	Class D	Depop Digital Inputs I2C I2S Mute Short-Circuit and Thermal Protection Volume Control
Texas Instruments TAS5731MPHPR	37.2 W 69.6 W	48-HTQFP (7x7)	Surface Mount	1-Channel (Mono) or 2-Channel (Stereo)	85 C	3 V 8 V	3.6 V 26.4 V	48-PowerTQFP	Class D	Depop Digital Inputs I2C I2S Mute Short-Circuit and Thermal Protection Volume Control

Catalog

20-W stereo, 41-W mono, 8- to 21.5-V, digital input open loop Class-D audio amplifier w/ 2.1 support

Key Features

• 2-Ch I2S Input; 8-kHz to 48-kHz fS30-W Stereo, 8 Ω/24 V (THD+N = 10%)Up to 90% Efficient OperationWide 8-V to- 24-V Supply Range; 3.3-V DigitalSupplySingle-Device 2.1 Support (2 × SE + 1 × BTL)80-mΩ RDS(on)Device That Can Support 2-Ω SEand 4-Ω BTL Modes12 V, 2 Ω, 8 W With SE mode12 V, 4 Ω, 15 W With BTL modeSpeaker EQ (8 BQ per Channel), 2× DRCsPin-to-Pin Compatible With the TAS5727 andTAS5731Benefits:Direct Connect to Digital ProcessorHigh Output Power From a Standard SupplyEliminates the Need for Heat SinkAdvanced Processing Improves AudioExperience2-Ch I2S Input; 8-kHz to 48-kHz fS30-W Stereo, 8 Ω/24 V (THD+N = 10%)Up to 90% Efficient OperationWide 8-V to- 24-V Supply Range; 3.3-V DigitalSupplySingle-Device 2.1 Support (2 × SE + 1 × BTL)80-mΩ RDS(on)Device That Can Support 2-Ω SEand 4-Ω BTL Modes12 V, 2 Ω, 8 W With SE mode12 V, 4 Ω, 15 W With BTL modeSpeaker EQ (8 BQ per Channel), 2× DRCsPin-to-Pin Compatible With the TAS5727 andTAS5731Benefits:Direct Connect to Digital ProcessorHigh Output Power From a Standard SupplyEliminates the Need for Heat SinkAdvanced Processing Improves AudioExperience

Description

The TAS5731M is a 30-W, efficient, digital-audio stereo power amplifier for driving stereo bridge-tied speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers. The TAS5731M is a slave-only device receiving all clocks from external sources. The TAS5731M operates with a PWM carrier between a 384-kHz switching rate and a 352-kHz switching rate, depending on the input sample rate. Oversampling combined with a fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz. The TAS5731M is a 30-W, efficient, digital-audio stereo power amplifier for driving stereo bridge-tied speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers. The TAS5731M is a slave-only device receiving all clocks from external sources. The TAS5731M operates with a PWM carrier between a 384-kHz switching rate and a 352-kHz switching rate, depending on the input sample rate. Oversampling combined with a fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz.
