134-1001 Series

Manufacturer: Cinch Connectivity Solutions Johnson

Catalog

ADAPTER, SMA JACK TO SMPM PLUG

Part	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Body Finish	Dielectric Material	Body Material	Adapter Type	Mounting Type	Convert To (Adapter End)	Adapter Series	Center Contact Plating	Conversion Type	Impedance	Features	Convert From (Adapter End)	Fastening Type	Frequency - Max [Max]	Style	Center Gender

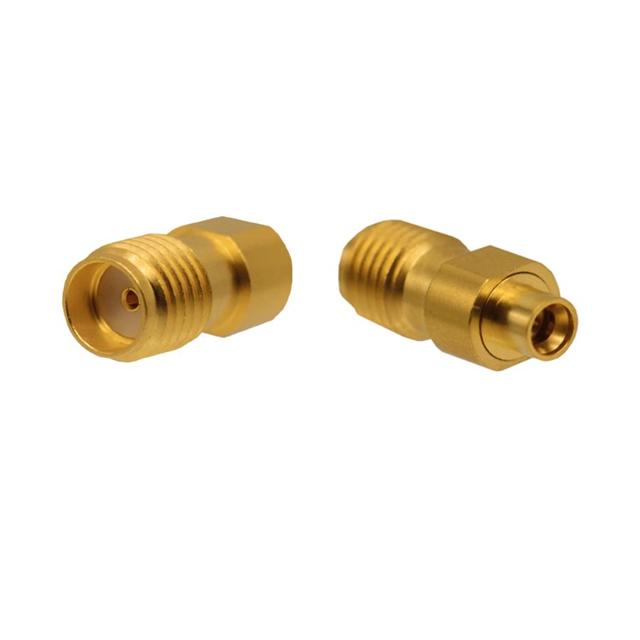

Cinch Connectivity Solutions Johnson 134-1001-004	Beryllium Copper	-65 ░C	165 °C	100 500	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper Brass	Plug to Jack	Free Hanging (In-Line)	SMPM Plug Male Pin	SMA to SMPM	Gold	Between Series	50 Ohms	Full Detent	Female Socket SMA Jack	Snap-On Threaded	26.5 GHz	Straight

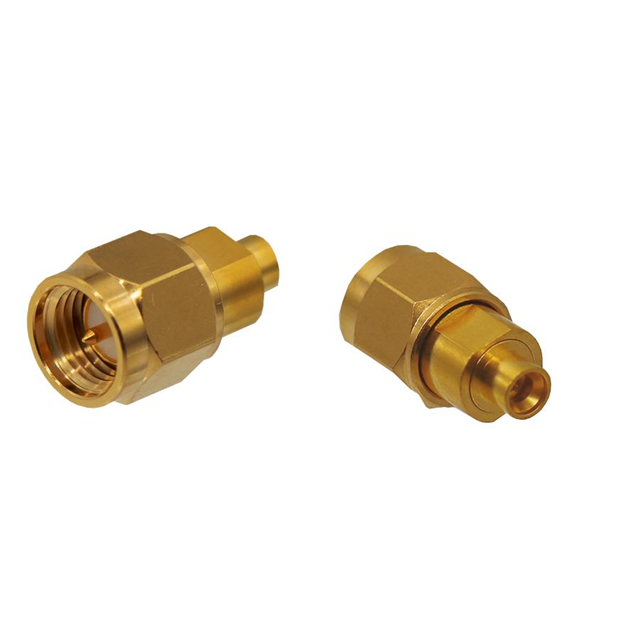

Cinch Connectivity Solutions Johnson 134-1001-001	Beryllium Copper	-65 ░C	165 °C	100 500	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper Brass	Plug to Plug	Free Hanging (In-Line)	SMPM Plug Male Pin	SMA to SMPM	Gold	Between Series	50 Ohms	Full Detent	Male Pin SMA Plug	Snap-On Threaded	26.5 GHz	Straight	Male to Male

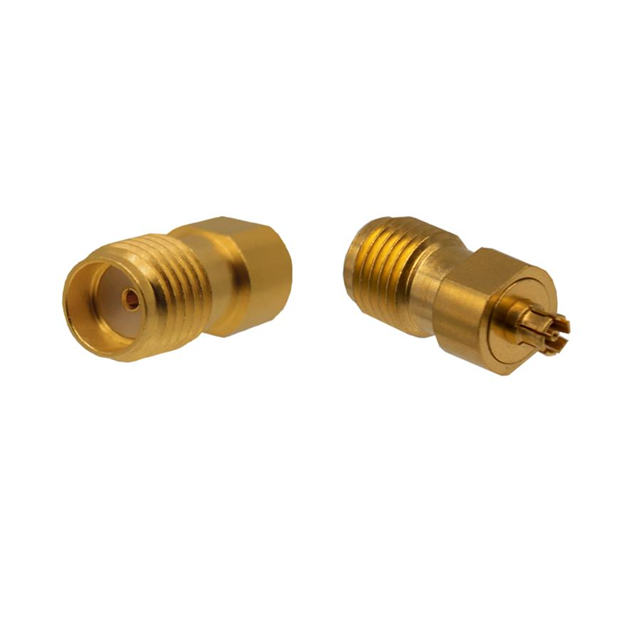

Cinch Connectivity Solutions Johnson 134-1001-003	Beryllium Copper	-65 ░C	165 °C	100 500	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper Brass	Jack to Jack	Free Hanging (In-Line)	Female Socket SMPM Jack	SMA to SMPM	Gold	Between Series	50 Ohms	Full Detent	Female Socket SMA Jack	Snap-On Threaded	26.5 GHz	Straight	Female to Female

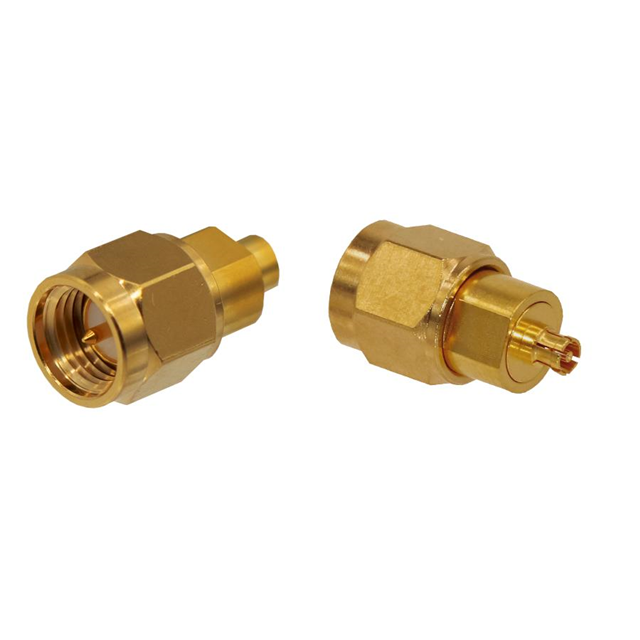

Cinch Connectivity Solutions Johnson 134-1001-002	Beryllium Copper	-65 ░C	165 °C	100 500	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper Brass	Plug to Jack	Free Hanging (In-Line)	Female Socket SMPM Jack	SMA to SMPM	Gold	Between Series	50 Ohms	Full Detent	Male Pin SMA Plug	Snap-On Threaded	26.5 GHz	Straight
