G-INS-N1/2 Series
Manufacturer: Phoenix Contact
Beta
⌘K

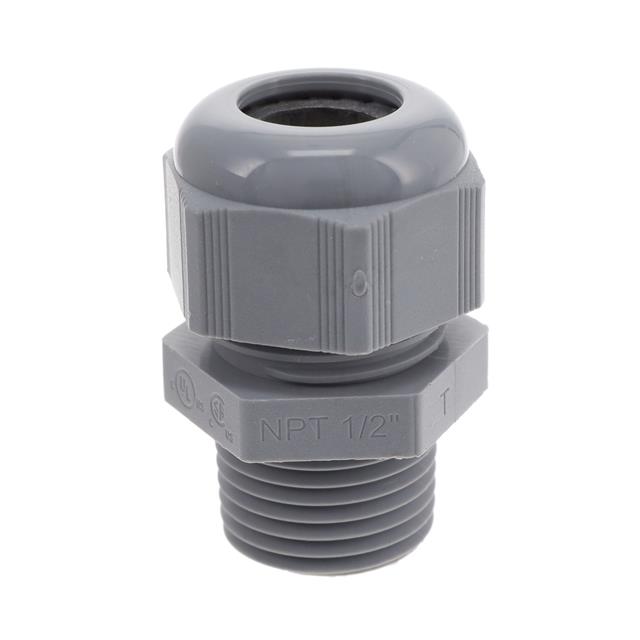

CABLE GLAND 10-14MM 1/2" NPT
| Part | Ingress Protection | Outside Cable Diameter (Max) | Outside Cable Diameter (Max) [Max] [diameter] | Includes | Outside Cable Diameter (Min) [Min] | Outside Cable Diameter (Min) [Min] | Material | Thread Size | Thread Length | Thread Length | Color | Operating Temperature [Min] | Operating Temperature [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | IP66 IP68 | 14 mm | 0.551 in | Seal | 10 mm | 0.394 " | Polyamide (PA) Nylon | 0.5 | 0.591 in | 15 mm | Gray | -40 C | 100 °C | Cable Gland |
 Phoenix Contact | IP66 IP68 | 14 mm | 0.551 in | Seal | 10 mm | 0.394 " | Polyamide (PA) Nylon | 0.5 | 0.591 in | 15 mm | Black | -40 C | 100 °C | Cable Gland |
