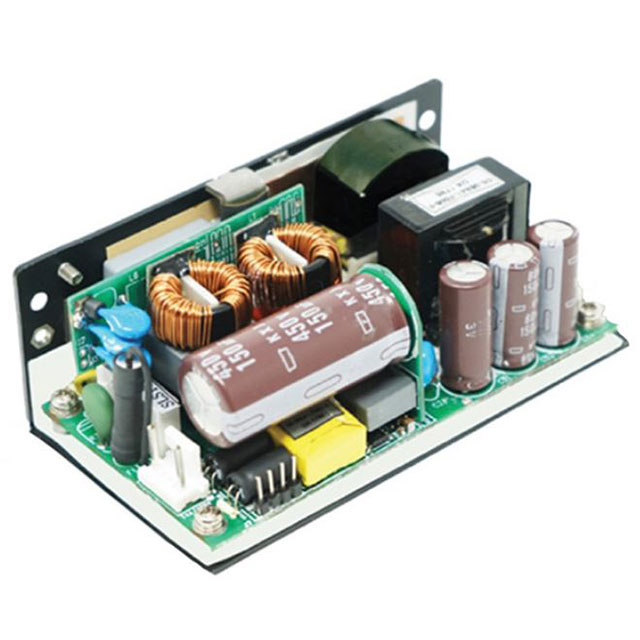

NGB250 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

SWITCHING POWER SUPPLIES MED 250W 48V

Part	Type	Voltage - Output 1	Current - Output 1	Mounting Type	Power (Watts)	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Number of Outputs	Voltage - Isolation	Standard Number
SL POWER / Advanced Energy NGB250S48K	Open Frame	48 V	3.6 A	Chassis Mount	173 W	90 %	80 ¯C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	50.8 mm	35.6 mm	1.4 "	2 in	101.6 mm	4 "	Adjustable Output Universal Input	1	4500 V
SL POWER / Advanced Energy NGB250S12K	Open Frame	12 V	14.6 A	Chassis Mount	175 W	90 %	80 ¯C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	50.8 mm	35.6 mm	1.4 "	2 in	101.6 mm	4 "	Adjustable Output Universal Input	1	4500 V
SL POWER / Advanced Energy NGB250S12C	Open Frame	12 V	14.6 A	Chassis Mount	175 W	90 %	80 ¯C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	50.8 mm	35.6 mm	1.4 "	2 in	101.6 mm	4 "	Adjustable Output Universal Input	1	4500 V	60601-1; 62368-1
SL POWER / Advanced Energy NGB250S15C	Open Frame	15 V	11.7 A	Chassis Mount	176 W	90 %	80 ¯C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	50.8 mm	35.6 mm	1.4 "	2 in	101.6 mm	4 "	Adjustable Output Universal Input	1	4500 V	60601-1; 62368-1
SL POWER / Advanced Energy NGB250S24C	Open Frame	24 V	7.3 A	Chassis Mount	175 W	90 %	80 ¯C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	50.8 mm	35.6 mm	1.4 "	2 in	101.6 mm	4 "	Adjustable Output Universal Input	1	4500 V	60601-1; 62368-1
SL POWER / Advanced Energy NGB250S24K	Open Frame	24 V	7.3 A	Chassis Mount	175 W	90 %	80 ¯C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	50.8 mm	35.6 mm	1.4 "	2 in	101.6 mm	4 "	Adjustable Output Universal Input	1	4500 V
SL POWER / Advanced Energy NGB250S48C	Open Frame	48 V	3.6 A	Chassis Mount	173 W	90 %	80 ¯C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	50.8 mm	35.6 mm	1.4 "	2 in	101.6 mm	4 "	Adjustable Output Universal Input	1	4500 V	60601-1; 62368-1
SL POWER / Advanced Energy NGB250S15K	Open Frame	15 V	11.7 A	Chassis Mount	176 W	90 %	80 ¯C	-20 °C	CE cURus DEMKO	ITE (Commercial) Medical	50.8 mm	35.6 mm	1.4 "	2 in	101.6 mm	4 "	Adjustable Output Universal Input	1	4500 V	60601-1; 62368-1
