20S Series

Catalog

PWR ENT RCPT IEC320-C20 PANEL QC

Part	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Mounting Type	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Current Rating - Appliance Inlet	Connector Type	Termination	Termination	Termination	Filter Type	Connector Style	Panel Cutout Dimensions	Features

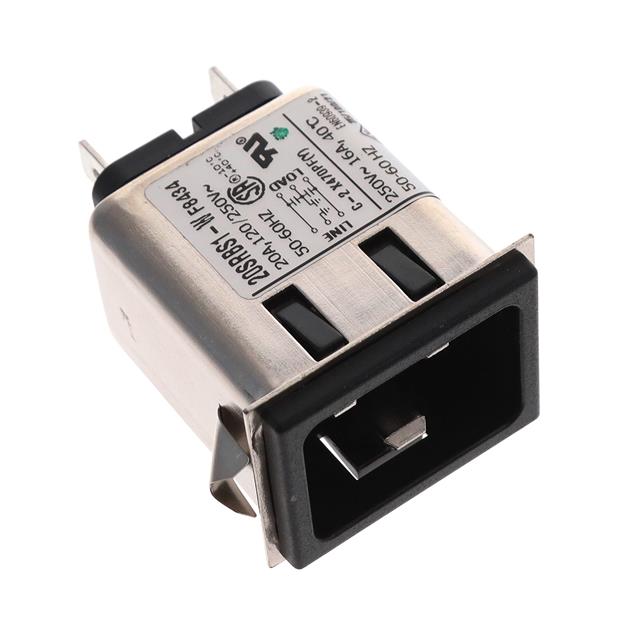

TE Connectivity Raychem Cable Protection 20SRBS1-W	250 VAC	120 VAC	Panel Mount Snap-In	0.047 "	0.79 mm	0.031 "	1.19 mm	36.83 mm	26.75 mm	CSA UL VDE	20 A	Male Blades Receptacle	0.25 in	6.3 mm	Quick Connect	Filtered (EMI RFI) - Commercial	IEC 320-C20
TE Connectivity Raychem Cable Protection 20SRBS1	250 VAC	120 VAC	Panel Mount Snap-In	0.047 "	0.79 mm	0.031 "	1.19 mm	36.83 mm	26.75 mm	CSA UL VDE	20 A	Male Blades Receptacle	0.25 in	6.3 mm	Quick Connect	Filtered (EMI RFI) - Commercial	IEC 320-C20

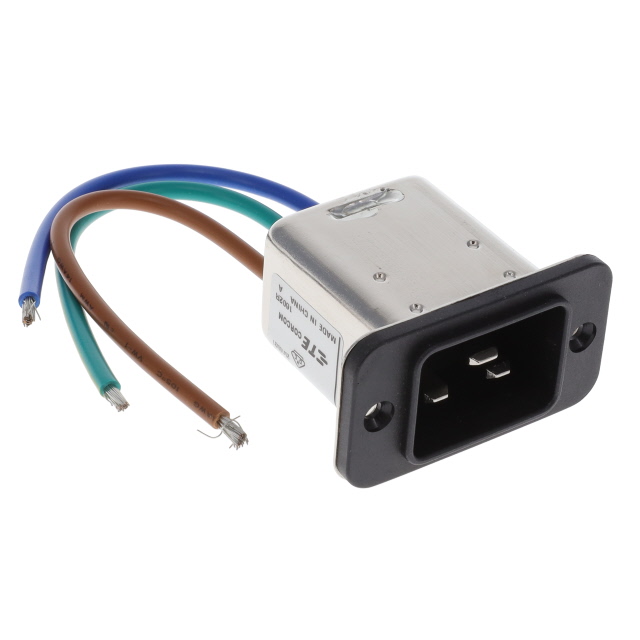

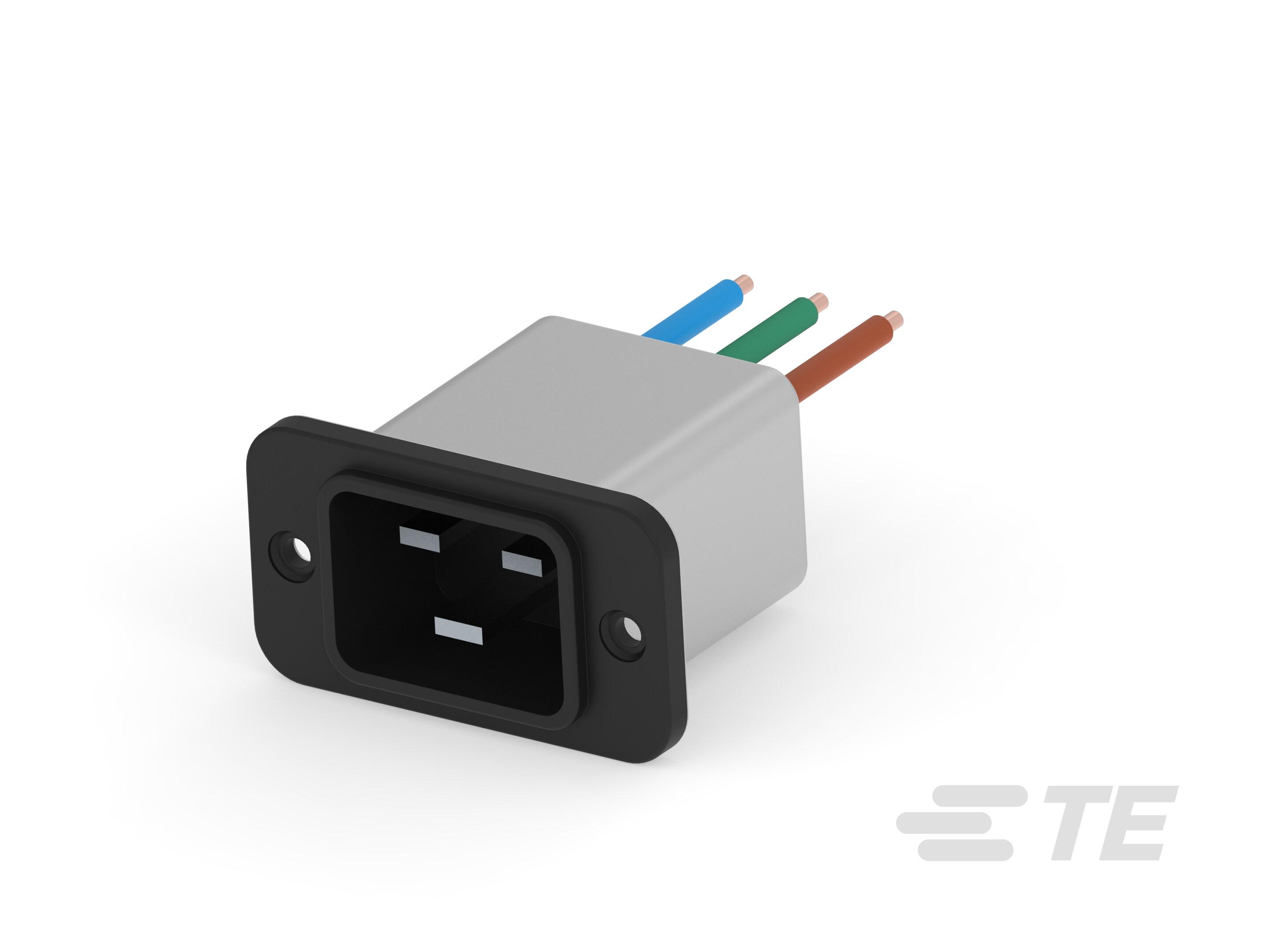

TE Connectivity Raychem Cable Protection 20SRB8	250 VAC	120 VAC	Flange Panel Mount							CSA UL VDE	20 A	Male Blades Receptacle			Wire Leads	Filtered (EMI RFI) - Commercial	IEC 320-C20	Variable Size	Front or Rear Side Mount

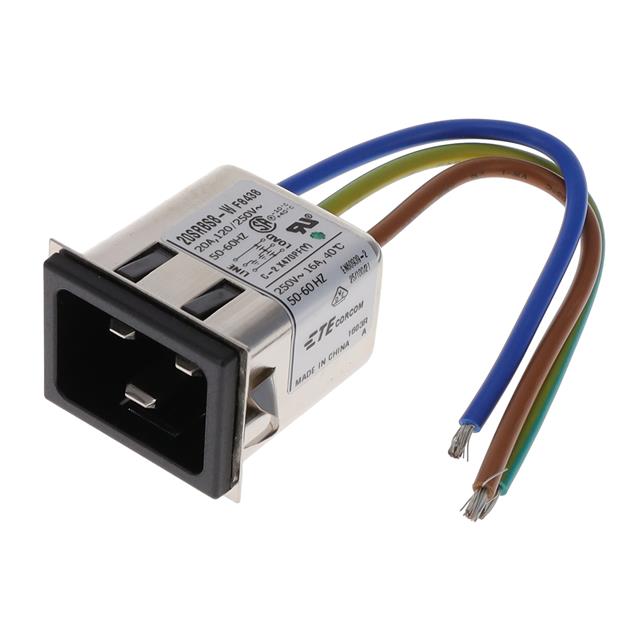

TE Connectivity Raychem Cable Protection 20SRBS8-W	250 VAC	120 VAC	Panel Mount Snap-In	0.047 "	0.79 mm	0.031 "	1.19 mm	36.83 mm	26.75 mm	CSA UL VDE	20 A	Male Blades Receptacle			Wire Leads	Filtered (EMI RFI) - Commercial	IEC 320-C20
TE Connectivity Raychem Cable Protection 20SRB8-W	250 VAC	120 VAC	Flange Panel Mount							CSA UL VDE	20 A	Male Blades Receptacle			Wire Leads	Filtered (EMI RFI) - Commercial	IEC 320-C20	Variable Size	Front or Rear Side Mount
