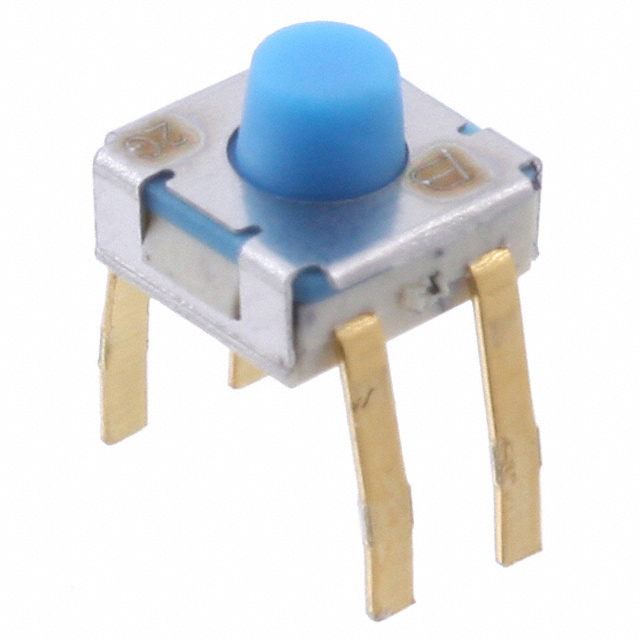

7914H Series
Manufacturer: Bourns Inc.
Beta
⌘K
SWITCH TACTILE N.O. SPST ROUND BUTTON PC PINS 0.1A 16VAC 16VDC 100000CYCLES 2.94N THRU-HOLE TUBE
| Part | Actuator Material | Mechanical Life | Mounting Type | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Orientation | Actuator Height off PCB, Vertical [z] | Ingress Protection | Circuit | Contact Rating @ Voltage | Outline [y] | Outline [x] | Actuator Type | Illumination | Operating Force | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Silicone Rubber | 100000 Cycles | Through Hole | Off-Mom | -55 C | 125 °C | Top Actuated | 3.82 mm | IP67 - Dust Tight Waterproof | SPST-NO | 0.1 A 16 VAC/DC | 5 mm | 5 mm | Standard | Non-Illuminated | 300 gf | PC Pin |
