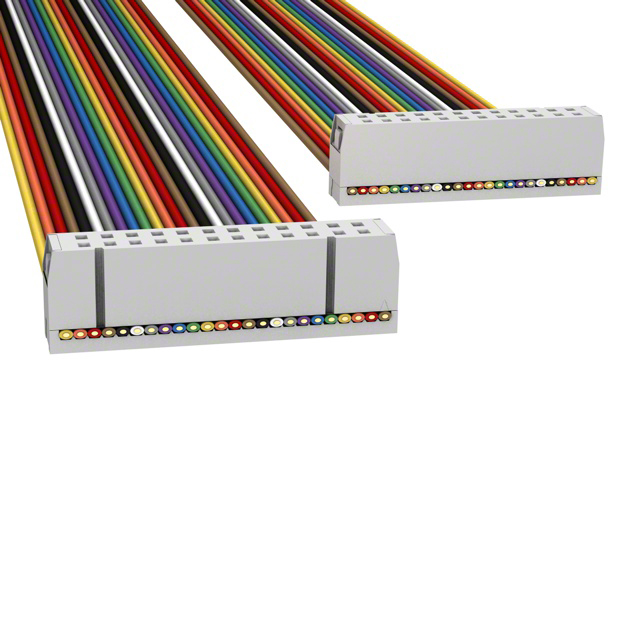

H3AAH-24 Series

Catalog

IDC CBL - HHSC24H/AE24G/HHSC24H

Part	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Contact Finish	Connector Type	Cable Termination	Number of Rows [custom]	Length [x]	Length [x]	Number of Positions	Length	Length	Length	Color
Assmann WSW Components H3AAH-2418G	0.05 in	1.27 mm	Unshielded	0.38 µm	15 µin	0.1 in	2.54 mm	Gold	Socket to Socket	IDC	2	457.2 mm	1.5 ft	24
Assmann WSW Components H3AAH-2406G	0.05 in	1.27 mm	Unshielded	0.38 µm	15 µin	0.1 in	2.54 mm	Gold	Socket to Socket	IDC	2			24	152.4 mm	0.5 '	6 "
Assmann WSW Components H3AAH-2436M	0.05 in	1.27 mm	Unshielded	0.38 µm	15 µin	0.1 in	2.54 mm	Gold	Socket to Socket	IDC	2			24	91.44 cm	3 ft		Multiple Ribbon
Assmann WSW Components H3AAH-2436G	0.05 in	1.27 mm	Unshielded	0.38 µm	15 µin	0.1 in	2.54 mm	Gold	Socket to Socket	IDC	2			24	91.44 cm	3 ft
Assmann WSW Components H3AAH-2418M	0.05 in	1.27 mm	Unshielded	0.38 µm	15 µin	0.1 in	2.54 mm	Gold	Socket to Socket	IDC	2	457.2 mm	1.5 ft	24				Multiple Ribbon
Assmann WSW Components H3AAH-2406M	0.05 in	1.27 mm	Unshielded	0.38 µm	15 µin	0.1 in	2.54 mm	Gold	Socket to Socket	IDC	2			24	152.4 mm	0.5 '	6 "	Multiple Ribbon
