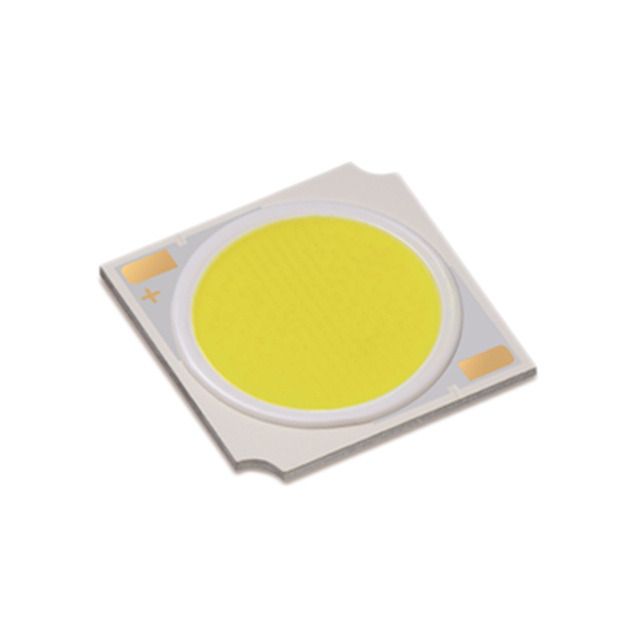

CLU038 Series

Catalog

LED COB CLU038 COOL WHT SQ 5000K

Part	Configuration	Size / Dimension [y]	Size / Dimension [x]	Type	CCT (K)	CCT (K)	Color	Light Emitting Surface (LES) [diameter]	Current - Max [Max]	Lens Type	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Height [z]	Current - Test	Temperature - Test	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)
Citizen Finedevice Co Ltd CLU038-1208C4-503M2K1	Square	19 mm	19 mm	Chip On Board (COB)	5000 K	3-Step MacAdam Ellipse	Cool White	14.5 mm	1.84 A	Flat	150 lm/W	3749 lm	1.4 mm	720 mA	85 °C	80	34.6 V
Citizen Finedevice Co Ltd CLU038-1210C4-353M2K1	Square	19 mm	19 mm	Chip On Board (COB)	3500 K	3-Step MacAdam Ellipse	Warm White	14.5 mm	2.3 A	Flat	144 lm/W	4470 lm	1.4 mm	900 mA	85 °C	80	34.6 V
Citizen Finedevice Co Ltd CLU038-1206C4-273H7K4	Square	19 mm	19 mm	Chip On Board (COB)	2700 K	3-Step MacAdam Ellipse	Warm White	14.5 mm	1.38 A	Flat	106 lm/W	1978 lm	1.4 mm	540 mA	85 °C	97	34.6 V
Citizen Finedevice Co Ltd CLU038-1210C4-273M2K1	Square	19 mm	19 mm	Chip On Board (COB)	2700 K	3-Step MacAdam Ellipse	Warm White	14.5 mm	2.3 A	Flat	133 lm/W		1.4 mm	900 mA	85 °C	80	34.6 V
Citizen Finedevice Co Ltd CLU038-1206C4-30AL7K3	Square	19 mm	19 mm	Chip On Board (COB)	3000 K	3-Step MacAdam Ellipse	Warm White	14.5 mm	1.38 A	Flat	155 lm/W	2897 lm	1.4 mm	540 mA	85 °C	70	34.6 V
Citizen Finedevice Co Ltd CLU038-1206C4-273H5K2	Square	19 mm	19 mm	Chip On Board (COB)	2700 K	3-Step MacAdam Ellipse	Warm White	14.5 mm	1.38 A	Flat	116 lm/W	2168 lm	1.4 mm	540 mA	85 °C	90	34.6 V
Citizen Finedevice Co Ltd CLU038-1205C4-303H5K2	Square	19 mm	19 mm	Chip On Board (COB)	3000 K	3-Step MacAdam Ellipse	Warm White	14.5 mm	1.15 A	Flat	122 lm/W	1907 lm	1.4 mm	450 mA	85 °C	90	34.6 V
Citizen Finedevice Co Ltd CLU038-1205C4-303H7K4	Square	19 mm	19 mm	Chip On Board (COB)	3000 K	3-Step MacAdam Ellipse	Warm White	14.5 mm	1.15 A	Flat	112 lm/W	1740 lm	1.4 mm	450 mA	85 °C	97	34.6 V
Citizen Finedevice Co Ltd CLU038-1206C4-40AL7K3	Square	19 mm	19 mm	Chip On Board (COB)	4000 K	3-Step MacAdam Ellipse	Neutral White	14.5 mm	1.38 A	Flat	160 lm/W	2992 lm	1.4 mm	540 mA	85 °C	70	34.6 V
