ECQ-E2124 Series

Catalog

CAP FILM 0.12UF 10% 250VDC RAD

Part	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Termination	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - DC	Lead Spacing	Lead Spacing	Applications	Dielectric Material	Capacitance	Height - Seated (Max)
Panasonic Electronic Components ECQ-E2124KF	10 %	-40 C	105 ░C	Through Hole	6 mm	0.406 in	10.3 mm	0.236 "	PC Pins	Radial	10 mm	0.394 in	250 V	0.295 in	7.5 mm	General Purpose	Polyester Metallized	0.12 µF

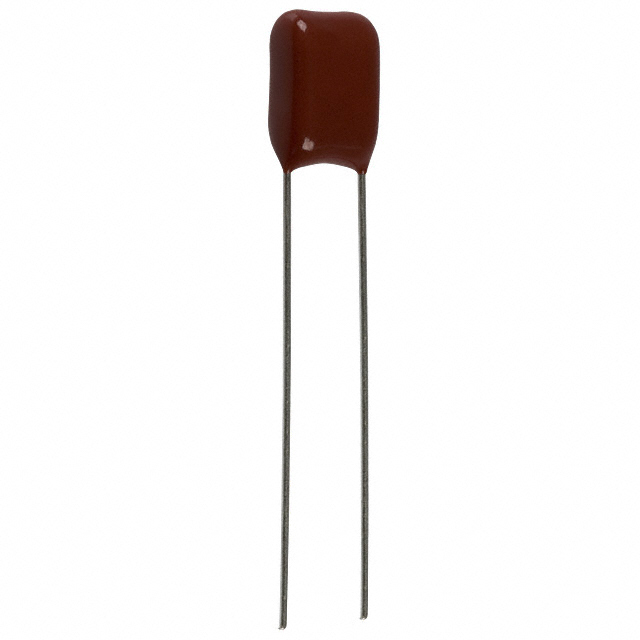

Panasonic Electronic Components ECQ-E2124KB	10 %	-40 C	105 ░C	Through Hole	5.7 mm	0.311 in	7.9 mm	0.224 "	PC Pins	Radial		0.457 in	250 V	0.197 "	5 mm	General Purpose	Polyester Metallized	0.12 µF	11.6 mm
Panasonic Electronic Components ECQ-E2124JF9	5 %	-40 C	105 ░C	Through Hole	6 mm	0.406 in	10.3 mm	0.236 "	PC Pins	Radial	14 mm	0.551 in	250 V	0.197 "	5 mm	General Purpose	Polyester Metallized	0.12 µF
Panasonic Electronic Components ECQ-E2124JFB	5 %	-40 C	105 ░C	Through Hole	6 mm	0.406 in	10.3 mm	0.236 "	PC Pins	Radial	14 mm	0.551 in	250 V	0.295 in	7.5 mm	General Purpose	Polyester Metallized	0.12 µF
Panasonic Electronic Components ECQ-E2124JB3	5 %	-40 C	105 ░C	Through Hole	5.7 mm	0.311 in	7.9 mm	0.224 "	PC Pins	Radial		0.614 in	250 V	0.197 "	5 mm	General Purpose	Polyester Metallized	0.12 µF	15.6 mm
Panasonic Electronic Components ECQ-E2124KB3	10 %	-40 C	105 ░C	Through Hole	5.7 mm	0.311 in	7.9 mm	0.224 "	PC Pins	Radial		0.614 in	250 V	0.197 "	5 mm	General Purpose	Polyester Metallized	0.12 µF	15.6 mm
