A3M1ASQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPST 80A 24V
| Part | Contact Material | Coil Resistance | Coil Power | Termination Style | Switching Voltage [Max] | Contact Rating (Current) | Operate Time | Contact Form | Must Operate Voltage | Coil Type | Coil Current | Features | Coil Voltage | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

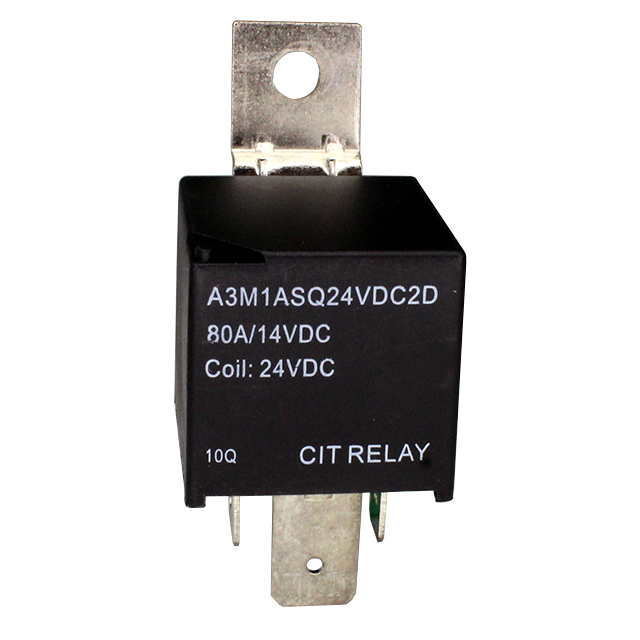

 CIT Relay and Switch | Silver Tin Oxide Indium Oxide (AgSnOInO) | 320 Ohms | 1.8 W | Quick Connect - Multiple Sizes | 75 VDC | 80 A | 7 ms | SPST-NO (1 Form A) | 16.8 VDC | Non Latching | 0.075 A | Diode Sealed - Fully | 24 VDC | 5 ms | 125 °C | -40 C | 2.4 VDC | Chassis Mount |

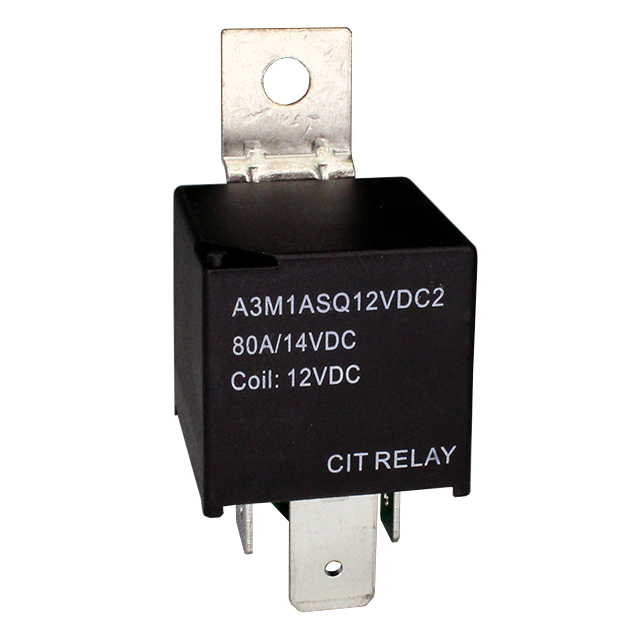

 CIT Relay and Switch | Silver Tin Oxide Indium Oxide (AgSnOInO) | 80 Ohms | 1.8 W | Quick Connect - Multiple Sizes | 75 VDC | 80 A | 7 ms | SPST-NO (1 Form A) | 8.4 VDC | Non Latching | 0.15 A | Sealed - Fully | 12 VDC | 5 ms | 125 °C | -40 C | 1.2 VDC | Chassis Mount |

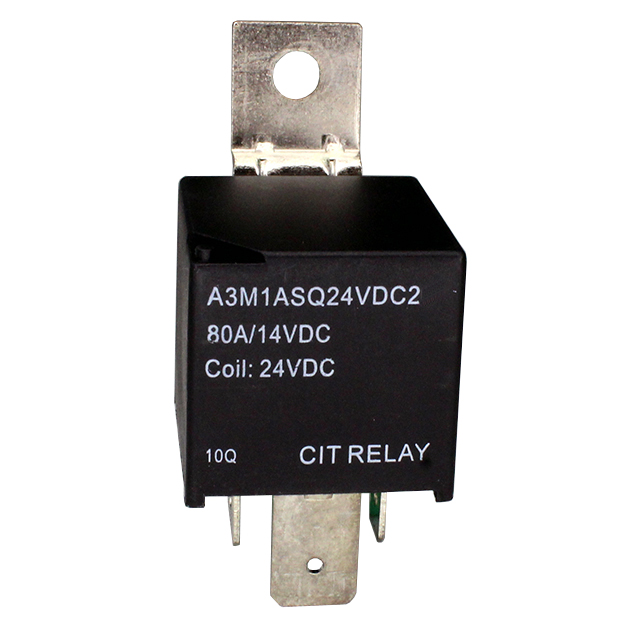

 CIT Relay and Switch | Silver Tin Oxide Indium Oxide (AgSnOInO) | 320 Ohms | 1.8 W | Quick Connect - Multiple Sizes | 75 VDC | 80 A | 7 ms | SPST-NO (1 Form A) | 16.8 VDC | Non Latching | 0.075 A | Resistor Sealed - Fully | 24 VDC | 5 ms | 125 °C | -40 C | 2.4 VDC | Chassis Mount |
