GSM36U09 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

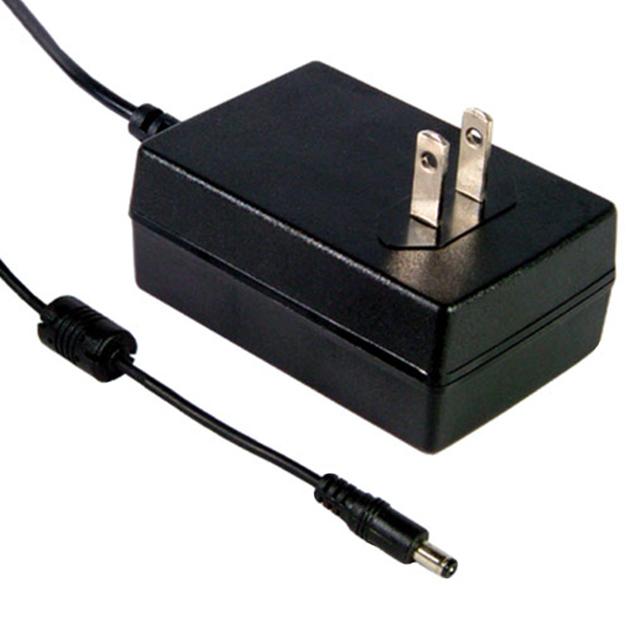

AC/DC WALL MOUNT ADAPTER 9V 36W
| Part | No Load Power Consumption | Applications | Output Connector [x] | Output Connector [diameter] | Output Connector | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Form | Input Connector | Power (Watts) | Polarization | Voltage - Input [Min] | Voltage - Input [Max] | Input Type | Cord Length | Cord Length | Efficiency | Region Utilized | Voltage - Output | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 100 mW | Medical | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 33 mm | 1.3 in | 3.11 in | 79 mm | 54 mm | 2.13 in | 4 A | -25 °C | 60 °C | Wall Mount | NEMA 1-15P | 36 W | Positive Center | 80 VAC | 264 VAC | Fixed Blade | 1.2 m | 47.2 in | Level V | North America | 9 V | CB cRUus TUV |
