MV571 Series

Catalog

LED LGT BAR 12.7X6.35MM RED

Part	Color	Voltage Rating	Current	Millicandela Rating	Lens Style	Mounting Type	Configuration	Lens Size [y]	Lens Size [x]	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Height (Max) [Max]	Package / Case	Viewing Angle	Lens Transparency	Supplier Device Package	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Lens Color	Size / Dimension [diameter]	Lens Size	Lens Size	Height (Max) [Max] [z]
ON Semiconductor MV57173	Red	2 V	35 mA	4.5 mcd	Rectangle with Flat Top	Through Hole	Bar - Single DIP	6.35 mm	12.7 mm	635 nm

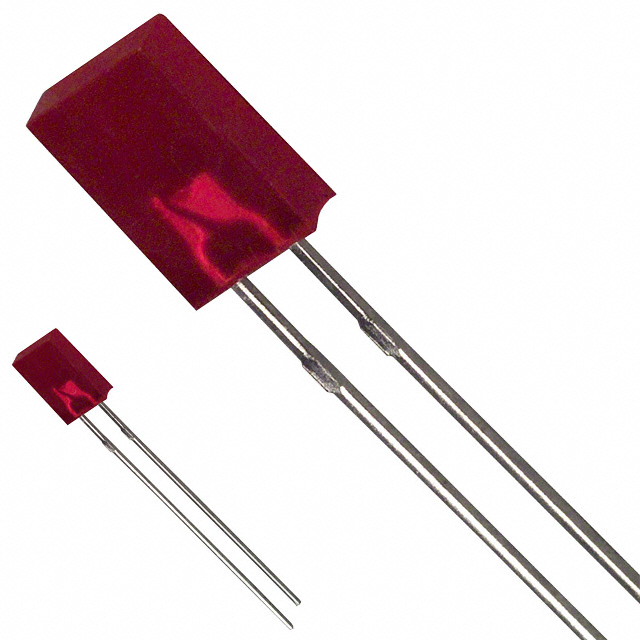

ON Semiconductor MV57123	Red			4 mcd	Rectangle with Flat Top	Through Hole	Standard	2 mm	5 mm	635 nm	2 V	7.8 mm	Radial	100 °	Diffused	Rectangular 2mmx5mm	20 mA	2.2 mm	5.2 mm	Red
ON Semiconductor MV57154	Red			8 mcd	Round with Domed Top	Through Hole	Standard			630 nm	2 V		Radial	50 °	Diffused	Bullet Profile T-1 3/4	10 mA			Orange	5 mm	T-1 3/4	5 mm	6.35 mm
ON Semiconductor MV57124A	Red			6 mcd	Rectangle with Flat Top	Through Hole	Standard	3.17 mm	5.71 mm	635 nm	2 V		Radial	100 °	Diffused	Rectangular	20 mA	3.68 mm	6.22 mm	Red				7.11 mm
ON Semiconductor MV57152	Red			10 mcd	Round with Domed Top	Through Hole	Standard			630 nm	2 V		Radial	45 °	Clear	Bullet Profile T-1 3/4	10 mA			Orange	5 mm	T-1 3/4	5 mm	6.35 mm
