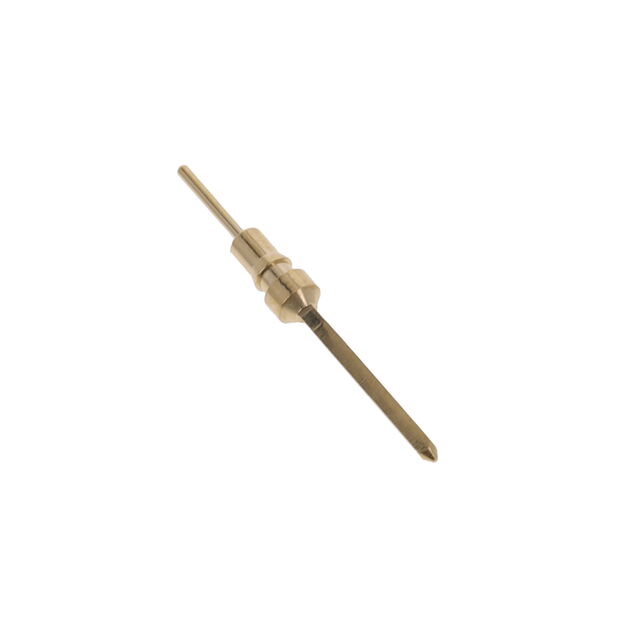

1083-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN SQUARE 0.025 TINLEAD
| Part | Contact Finish | Pin Size - Above Flange | Pin Size - Above Flange | Length - Above Flange [x] | Length - Above Flange [x] | Contact Material | Length - Overall [x] | Length - Overall [x] | Mounting Hole Diameter | Mounting Hole Diameter | Contact Finish Thickness | Contact Finish Thickness | Insulation | Terminal Type | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Tin-Lead | 0.025 in | 0.64 mm | 7.87 mm | 0.31 in | Brass Alloy | 0.621 " | 15.77 mm | 0.059 in | 1.5 mm | 200 Áin | 5.08 Ám | Non-Insulated | PC Pin | 0.46 mm | 0.018 in | 1.77 mm | 0.07 in | Press-Fit Wire Wrap | Double End | 6.58 mm | 0.259 " | Through Hole |
Mill-Max Manufacturing Corp. | Gold | 0.025 in | 0.64 mm | 7.87 mm | 0.31 in | Brass Alloy | 0.621 " | 15.77 mm | 0.059 in | 1.5 mm | 10 Áin | 0.25 Ám | Non-Insulated | PC Pin | 0.46 mm | 0.018 in | 1.77 mm | 0.07 in | Press-Fit Wire Wrap | Double End | 6.58 mm | 0.259 " | Through Hole |
 Mill-Max Manufacturing Corp. | Gold | 0.025 in | 0.64 mm | 7.87 mm | 0.31 in | Brass Alloy | 0.621 " | 15.77 mm | 0.059 in | 1.5 mm | 20 µin | 0.51 µm | Non-Insulated | PC Pin | 0.46 mm | 0.018 in | 1.77 mm | 0.07 in | Press-Fit Wire Wrap | Double End | 6.58 mm | 0.259 " | Through Hole |
