BU-P37 Series
Manufacturer: Mueller Electric Co
Beta
⌘K
RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM, BERYLLIUM COPPER
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Includes | Center Contact Plating | Dielectric Material | Body Material | Mounting Type | Contact Termination | Shield Termination | Mounting Feature | Impedance | Fastening Type | Number of Ports | Connector Type | Connector Style | Housing Color | Center Contact Material | Features | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

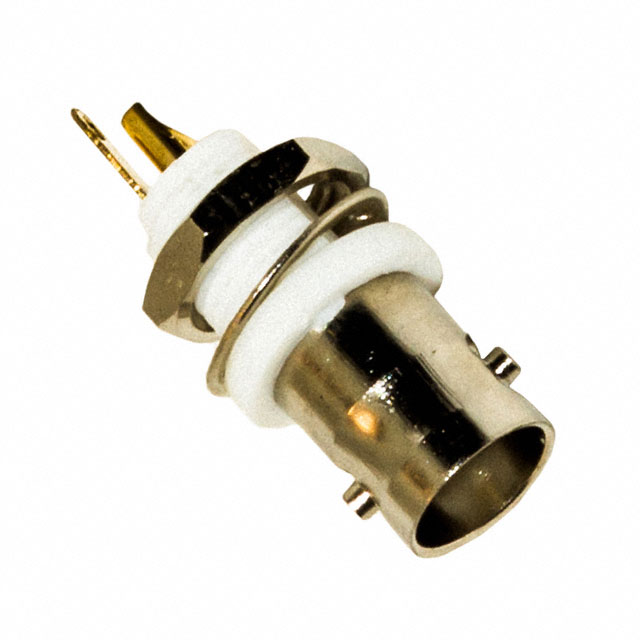

 Mueller Electric Co | 500 V | -70 °C | 170 °C | Nickel | 1 Connector 1 Lockwasher 1 Nut | Gold | Polytetrafluoroethylene (PTFE) | Brass | Panel Mount | Solder Cup | Solder | Bulkhead - Rear Side Nut | 50 Ohms | Bayonet Lock | 1 | Female Socket Jack | BNC | Silver White | Beryllium Copper | Isolated | |

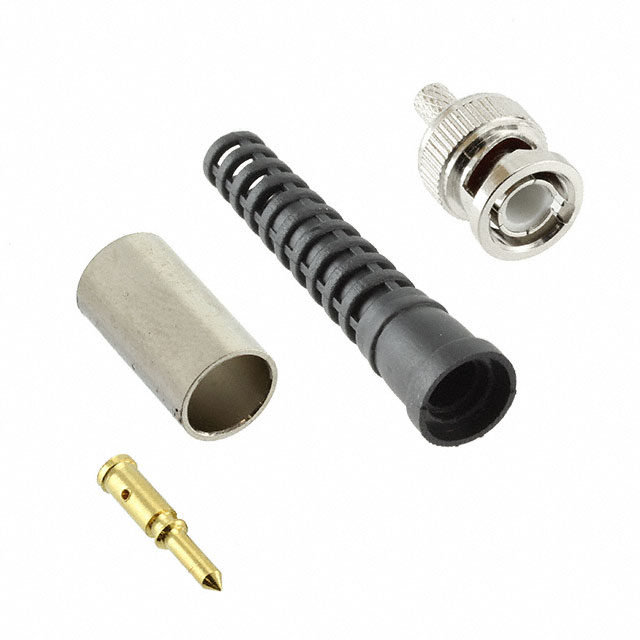

 Mueller Electric Co | -50 °C | 170 °C | Nickel | 1 Connector 1 Contact 1 Ferrule 1 Strain Relief | Gold | Polytetrafluoroethylene (PTFE) | Brass | Free Hanging (In-Line) | Crimp | Crimp | 50 Ohms | Bayonet Lock | 1 | Plug Male Pin | BNC | Silver | Brass | RG-58 |
