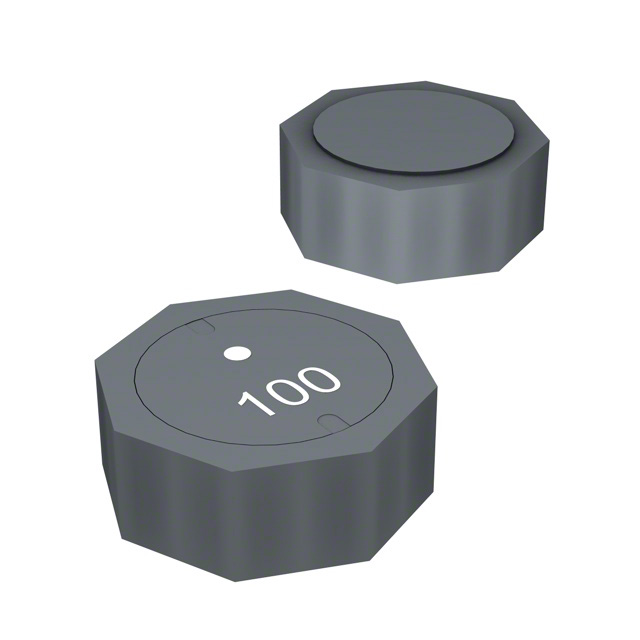

SRU1038 Series

Catalog

IND10X10X3.8MM,3.8UH30%5.5A,SHDSMD /TAPE & REEL - 13" REEL

Part	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Frequency - Self Resonant	Tolerance	Current Rating (Amps)	Package / Case	Current - Saturation (Isat)	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	Material - Core	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq	Q @ Freq [custom]
Bourns Inc. SRU1038-3R8Y	125 °C	-40 C	3.8 µH	Shielded	4.1 mm	0.161 in	100 kHz	35 MHz	30 %	5.5 Amps	Nonstandard	5.5 A	Surface Mount	0.394 in	0.394 in	10 mm	10 mm	Drum Core Wirewound	Ferrite	15 mOhm	14	7.96 MHz
Bourns Inc. SRU1038-150Y	125 °C	-40 C	15 µH	Shielded	4.1 mm	0.161 in	100 kHz	16 MHz	30 %	2.8 A	Nonstandard	2.7 A	Surface Mount	0.394 in	0.394 in	10 mm	10 mm	Drum Core Wirewound	Ferrite	37 mOhm	24	2.52 MHz
Bourns Inc. SRU1038-2R5Y	125 °C	-40 C	2.5 µH	Shielded	4.1 mm	0.161 in	100 kHz	50 MHz	30 %	6.1 A	Nonstandard	6 A	Surface Mount	0.394 in	0.394 in	10 mm	10 mm	Drum Core Wirewound	Ferrite	12.5 mOhm			7.96 MHz 12
Bourns Inc. SRU1038-151Y	125 °C	-40 C	150 µH	Shielded	4.1 mm	0.161 in	100 kHz	5 MHz	30 %	900 mA	Nonstandard	800 mA	Surface Mount	0.394 in	0.394 in	10 mm	10 mm	Drum Core Wirewound	Ferrite	358 mOhm	20			796 kHz
