GECA20 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 24V 20W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Power (Watts) | Type | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Applications | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Features | Current - Output 1 | Efficiency | Mounting Type | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 45 °C | 0 °C | CB CE | 20 W | Open Frame | 264 VAC | 90 VAC | 24 V | ITE (Commercial) | 89.1 mm | 0.85 " | 3.5 " | 51 mm | 2 in | 21.6 mm | Adjustable Output Universal Input | 840 mA | 80 % | Chassis Mount | 1 |

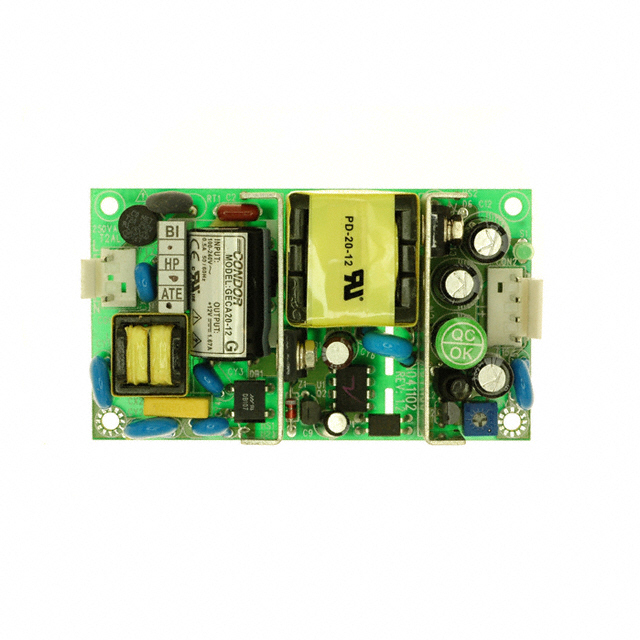

 SL POWER / Advanced Energy | 45 °C | 0 °C | CB CE | 20 W | Open Frame | 264 VAC | 90 VAC | 12 V | ITE (Commercial) | 89.1 mm | 0.85 " | 3.5 " | 51 mm | 2 in | 21.6 mm | Adjustable Output Universal Input | 1.67 A | 80 % | Chassis Mount | 1 |
 SL POWER / Advanced Energy | 45 °C | 0 °C | CB CE | 20 W | Open Frame | 264 VAC | 90 VAC | 5.1 V | ITE (Commercial) | 89.1 mm | 0.85 " | 3.5 " | 51 mm | 2 in | 21.6 mm | Adjustable Output Universal Input | 4 A | 80 % | Chassis Mount | 1 |

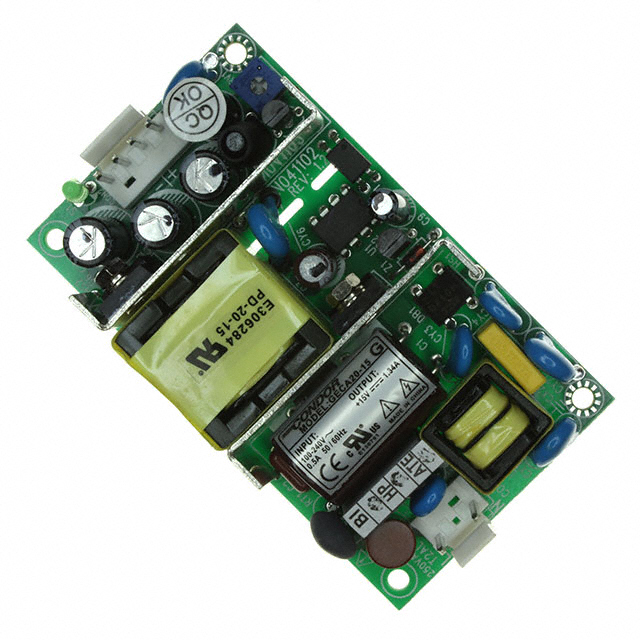

 SL POWER / Advanced Energy | 45 °C | 0 °C | CB CE | 20 W | Open Frame | 264 VAC | 90 VAC | 15 V | ITE (Commercial) | 89.1 mm | 0.85 " | 3.5 " | 51 mm | 2 in | 21.6 mm | Adjustable Output Universal Input | 1.34 A | 80 % | Chassis Mount | 1 |
