JANTX1 Series

Catalog

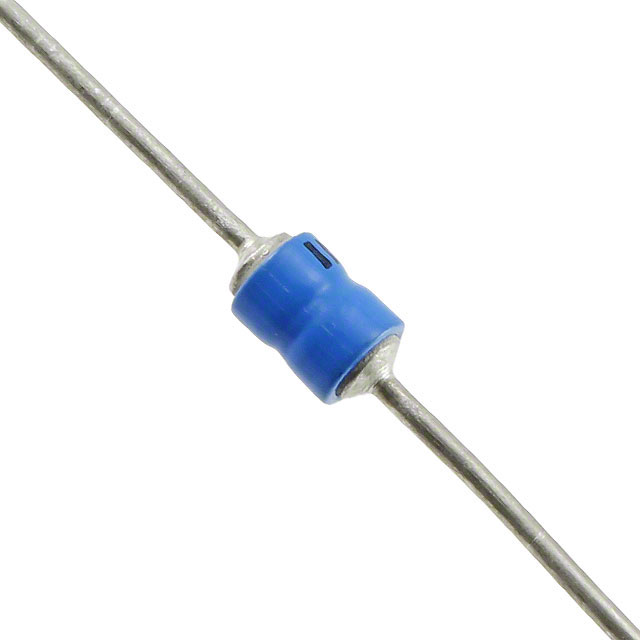

TVS DIODE 25.1VWM 47.99VC AXIAL

Part	Power - Peak Pulse	Bidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Qualification	Type	Applications	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Breakdown (Min) [Min]	Package / Case	Grade	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Technology
Microsemi Corporation JANTX1N6118US	500 W	1	10.36 A	B Axial	MIL-PRF-19500/516	Zener	General Purpose	25.1 V	47.99 V	175 °C	-55 °C	Through Hole	29.83 V	B Axial	Military
Microsemi Corporation JANTX1N6117US	500 W	1	11.4 A	B SQ-MELF	MIL-PRF-19500/516	Zener	General Purpose	22.8 V	43.68 V	175 °C	-55 °C	Surface Mount	27.08 V	SQ-MELF B	Military
Microsemi Corporation JANTX1N6620U				D-5A	MIL-PRF-19500/585							Surface Mount			Military	200 V	1.4 V	1.2 A	500 nA	1.2 A	30 ns	150 °C	-65 C	200 mA 500 ns	Standard
Microsemi Corporation JANTX1N6105US	500 W	1	35.44 A	B SQ-MELF	MIL-PRF-19500/516	Zener	General Purpose	6.9 V	14.07 V	175 °C	-55 °C	Surface Mount	8.22 V	SQ-MELF B	Military
