G-INB-M25 Series
Manufacturer: Phoenix Contact
Beta
⌘K

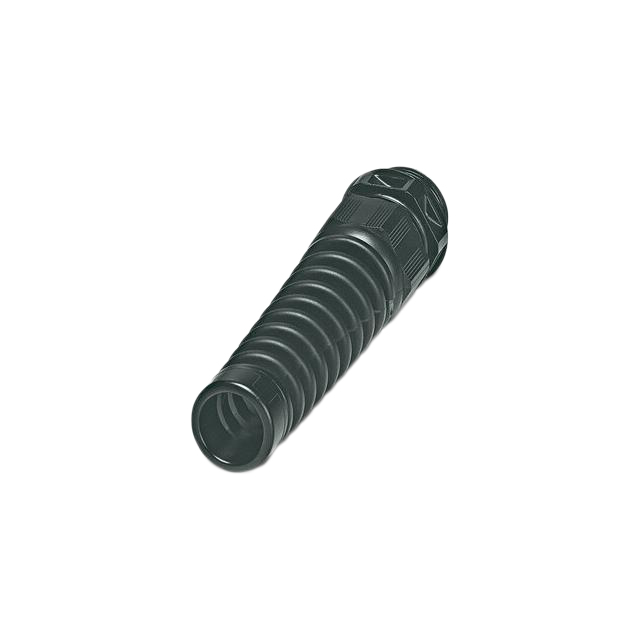

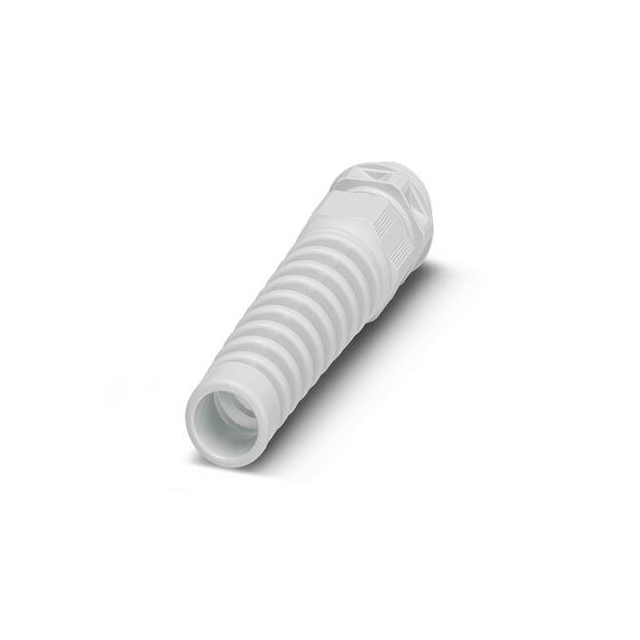

CABLE GLAND 9-16.99MM M25
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Type | Thread Length | Thread Length | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Includes | Thread Size | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) | Ingress Protection | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | -40 C | 100 °C | Black | Cable Gland | 12 mm | 0.472 in | 0.354 in | 9 mm | O-Ring Seal Strain Relief | M25 | 0.669 in | 16.99 mm | IP68 IP69 | Polyamide (PA) Nylon |
 Phoenix Contact | -40 C | 100 °C | Light Gray | Cable Gland | 12 mm | 0.472 in | 0.354 in | 9 mm | O-Ring Seal Strain Relief | M25 | 0.669 in | 16.99 mm | IP68 IP69 | Polyamide (PA) Nylon |
 Phoenix Contact | -40 C | 100 °C | Silver | Cable Gland | 7 mm | 0.276 " | 0.354 in | 9 mm | O-Ring Seal Strain Relief | M25 | 0.669 in | 16.99 mm | IP68 IP69 | Brass Nickel Plated |
