EPSA240025 Series

Manufacturer: CUI Inc.

Catalog

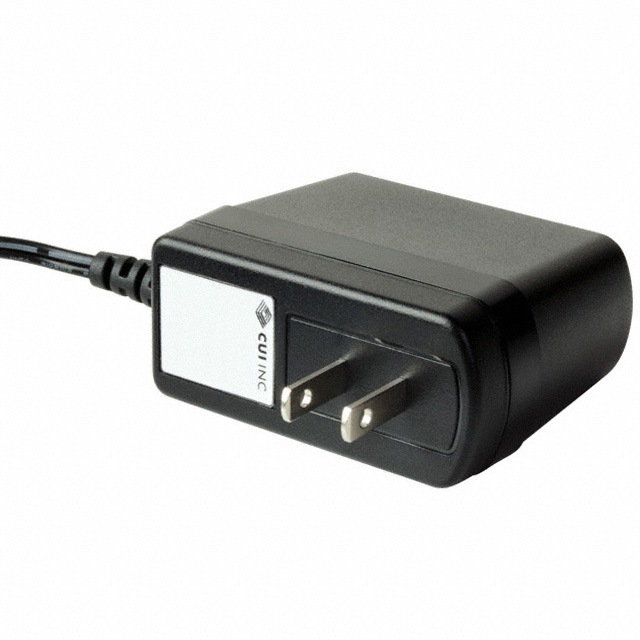

AC/DC WALL MOUNT ADAPTER 24V 6W

Part	Output Connector [diameter]	Output Connector	Output Connector [z]	Input Type	Applications	Approval Agency	Power (Watts)	Weight [custom]	Weight [custom]	Cord Length	Cord Length	Form	Current - Output (Max) [Max]	Efficiency	Region Utilized	Voltage - Output	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Polarization	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Output Connector [x]
CUI Inc. EPSA240025UW-P6RP-SZ	2.5 mm 5.5 mm	Barrel Plug R/A	9.5 mm	Fixed Blade	ITE (Commercial)	CE TUVgs	6 W	0.139 lb	63.05 g	60.2 in	1.53 m	Wall Mount	250 mA	Level V	North America	24 V	NEMA 1-15P	264 VAC	90 VAC	Positive Center	2.35 "	1.82 "	59.8 mm	1.05 in	46.1 mm	26.6 mm	40 °C
CUI Inc. EPSA240025UW-P5RP-SZ		Barrel Plug R/A		Fixed Blade	ITE (Commercial)	CE TUVgs	6 W	0.139 lb	63.05 g	60.2 in	1.53 m	Wall Mount	250 mA	Level V	North America	24 V	NEMA 1-15P	264 VAC	90 VAC	Positive Center	2.35 "	1.82 "	59.8 mm	1.05 in	46.1 mm	26.6 mm	40 °C	9.5 mm	5.5 mm	2.1 mm
CUI Inc. EPSA240025UW-P6P-SZ	2.5 mm 5.5 mm	Barrel Plug		Fixed Blade	ITE (Commercial)	CE TUVgs	6 W	0.139 lb	63.05 g	60.2 in	1.53 m	Wall Mount	250 mA	Level V	North America	24 V	NEMA 1-15P	264 VAC	90 VAC	Positive Center	2.35 "	1.82 "	59.8 mm	1.05 in	46.1 mm	26.6 mm	40 °C				9.5 mm
CUI Inc. EPSA240025U-P5P-SZ	2.1 mm 5.5 mm	Barrel Plug		Fixed Blade	ITE (Commercial)	CE TUVgs	6 W	0.139 lb	63.05 g	60.2 in	1.53 m	Wall Mount	250 mA	Level V	North America	24 V	NEMA 1-15P	264 VAC	90 VAC	Positive Center	2.35 "	1.82 "	59.8 mm	1.05 in	46.1 mm	26.6 mm	40 °C				9.5 mm
