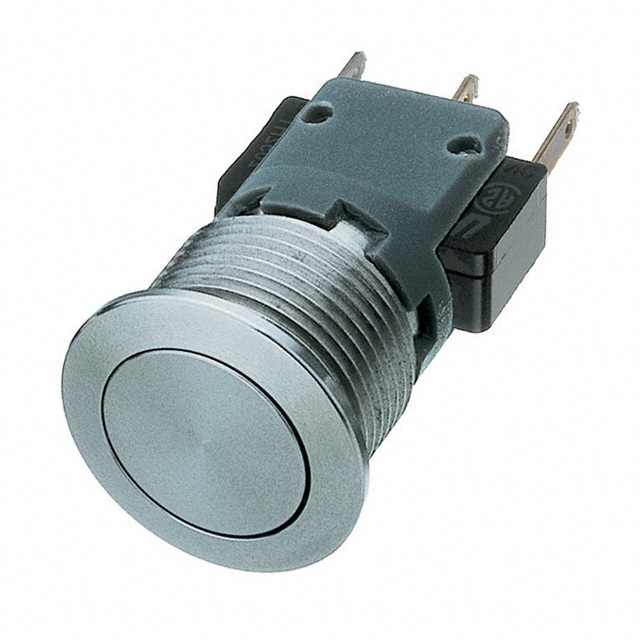

1241.6611 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH PUSHBUTTON SPDT 5A 125V
| Part | Mechanical Life | Electrical Life | Actuator Marking | Color - Actuator/Cap | Switch Function | Actuator Type | Panel Cutout Dimensions [diameter] | Mounting Type | Termination Style | Type | Ingress Protection | Circuit | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | No Marking | Silver | On-Mom | Button Flush Round | 16.1 mm | Panel Mount Front | Quick Connect - 0.110" (2.8mm) | Anti-Vandal | IP40 | SPDT | 5 A | 85 °C | -25 °C | 125 V |
