CPH634 Series

Catalog

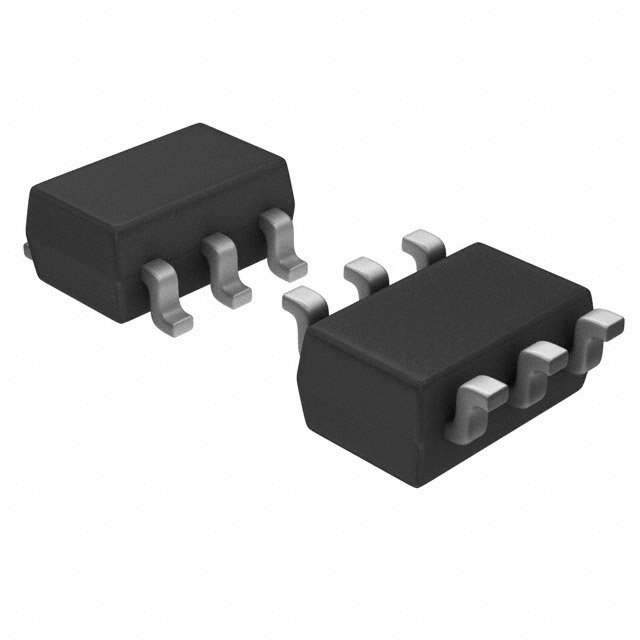

MOSFET P-CH 30V 5A 6CPH

Part	Mounting Type	FET Type	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	Technology	Package / Case	Supplier Device Package	Operating Temperature	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Vgs(th) (Max) @ Id	Drive Voltage (Max Rds On, Min Rds On)
ON Semiconductor CPH6341-TL-E	Surface Mount	P-Channel	20 V	10 nC	MOSFET (Metal Oxide)	SOT-23-6	6-CPH	150 °C	430 pF	59 mOhm	5 A	30 V	4 V	10 V
ON Semiconductor CPH6347-TL-HX	Surface Mount	P-Channel	12 V	10.5 nC	MOSFET (Metal Oxide)	SOT-23-6 Thin TSOT-23-6	6-CPH	150 °C			6 A	20 V			1.4 V	1.8 V 4.5 V
ON Semiconductor CPH6347-TL-H	Surface Mount	P-Channel	12 V	10.5 nC	MOSFET (Metal Oxide)	SOT-23-6	6-CPH	150 °C			6 A	20 V				1.8 V 4.5 V
ON Semiconductor CPH6341-TL-EX	Surface Mount	P-Channel	20 V	10 nC	MOSFET (Metal Oxide)	SOT-23-6 Thin TSOT-23-6	6-CPH	150 °C	430 pF	59 mOhm	5 A	30 V	4 V	10 V
