6542PA Series
Manufacturer: Belden Inc.
Beta
⌘K

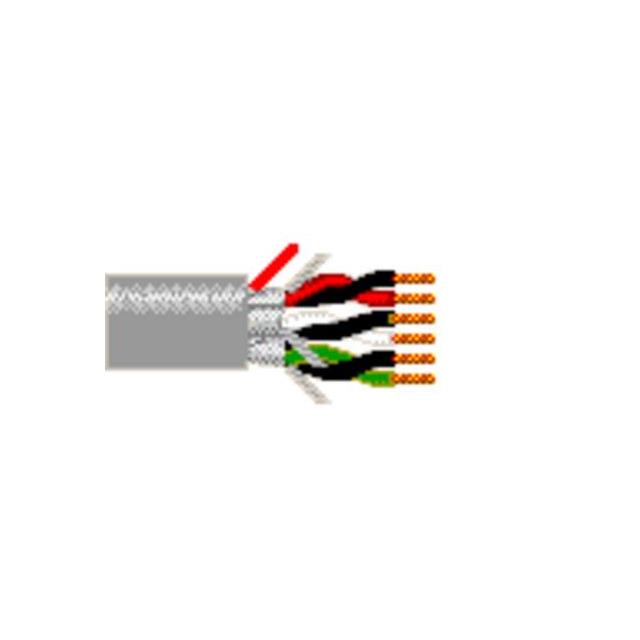

MULTI-PAIR 6CON 22AWG GRAY
| Part | Shield Material | Shield Coverage | Number of Conductors | Length | Length | Jacket (Insulation) Material | Cable Type | Ratings | Wire Gauge | Conductor Insulation | Voltage | Usage | Conductor Material | Features | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 6 | 304.8 m | 1000 ft | Plenum Polyvinylidene Fluoride (PVDF) | Multi-Pair | UL Style CMP | 22 AWG | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | Security Sound | Copper Bare | Drain Wire Rip Cord | 30 AWG | 7 | 5.79 mm | 0.228 in | Foil | 0.381 mm | 0.015 in | Gray | 150 °C | -20 ░C |
