S11MA7-P Series
Manufacturer: ODU
Beta
⌘K

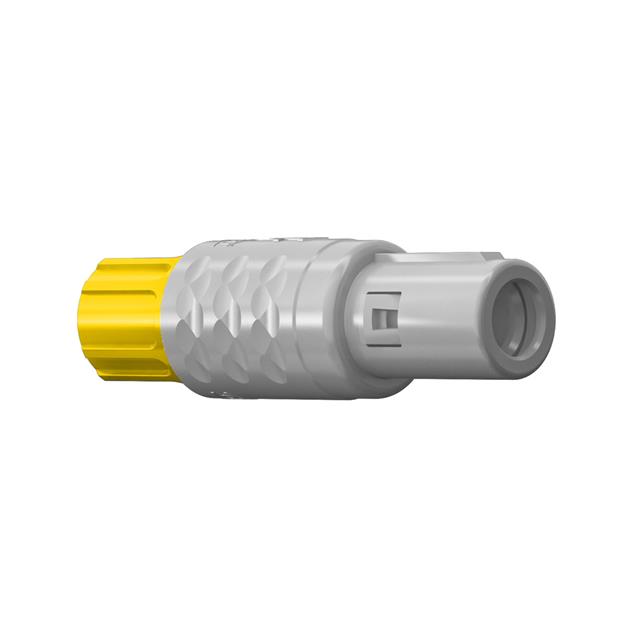

CONN PLUG MALE 10P GOLD SLDR CUP
| Part | Applications | Shell Material | Orientation | Backshell Material, Plating | Mounting Type | Fastening Type | Insert Material | Current Rating (Amps) | Color | Number of Positions | Connector Type | Contact Finish - Mating | Shielding | Primary Material | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Shell Size - Insert | Contact Material | Ingress Protection | Cable Opening [Max] | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | A | Polysulfone (PSU) | Free Hanging (In-Line) | Push-Pull | Polyetheretherketone (PEEK) | 2.75 A | Gray Green | 10 | Plug Male Pins | Gold | Unshielded | Plastic | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | 120 °C | -50 °C | Backshell | 1 | Brass | IP50 - Dust Protected | |||
Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | A | Polysulfone (PSU) | Free Hanging (In-Line) | Push-Pull | Polyetheretherketone (PEEK) | 2.75 A | Gray Red | 10 | Plug Male Pins | Gold | Unshielded | Plastic | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | 120 °C | -50 °C | Backshell | 1 | Brass | IP50 - Dust Protected | |||
Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | A | Polysulfone (PSU) | Free Hanging (In-Line) | Push-Pull | Polyetheretherketone (PEEK) | 2.5 A | Gray White | 14 | Plug Male Pins | Gold | Unshielded | Plastic | 0.106 in | 0.154 in | 2.7 mm | 120 °C | -50 °C | Backshell | 1 | Brass | IP50 - Dust Protected | 3.9 mm | |||
Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | A | Polysulfone (PSU) | Free Hanging (In-Line) | Push-Pull | Polyetheretherketone (PEEK) | 14 A | Blue Gray | 2 | Plug Male Pins | Gold | Unshielded | Plastic | 0.157 in | 0.205 in | 120 °C | -50 °C | Backshell | 1 | Brass | IP50 - Dust Protected | 4 mm 5.2 mm | ||||
Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | A | Polysulfone (PSU) | Free Hanging (In-Line) | Push-Pull | Polyetheretherketone (PEEK) | 2.75 A | Gray Yellow | 10 | Plug Male Pins | Gold | Unshielded | Plastic | 0.157 in | 0.205 in | 120 °C | -50 °C | Backshell | 1 | Brass | IP50 - Dust Protected | 4 mm 5.2 mm | ||||
Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | A | Polysulfone (PSU) | Free Hanging (In-Line) | Push-Pull | Polyetheretherketone (PEEK) | 4.55 A | Blue Gray | 6 | Plug Male Pins | Gold | Unshielded | Plastic | 0.157 in | 0.205 in | 120 °C | -50 °C | Backshell | 1 | Brass | IP50 - Dust Protected | 4 mm 5.2 mm | ||||
Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | A | Polysulfone (PSU) | Free Hanging (In-Line) | Push-Pull | Polyetheretherketone (PEEK) | 7.5 A | Gray Green | 5 | Plug Male Pins | Gold | Unshielded | Plastic | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | 120 °C | -50 °C | Backshell | 1 | Brass | IP50 - Dust Protected | |||
Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | A | Polysulfone (PSU) | Free Hanging (In-Line) | Push-Pull | Polyetheretherketone (PEEK) | 2.5 A | Blue Gray | 14 | Plug Male Pins | Gold | Unshielded | Plastic | 0.157 in | 0.205 in | 120 °C | -50 °C | Backshell | 1 | Brass | IP50 - Dust Protected | 4 mm 5.2 mm | ||||
Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | A | Polysulfone (PSU) | Free Hanging (In-Line) | Push-Pull | Polyetheretherketone (PEEK) | 2.5 A | Blue Gray | 14 | Plug Male Pins | Gold | Unshielded | Plastic | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | 120 °C | -50 °C | Backshell | 1 | Brass | IP50 - Dust Protected | |||
Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | A | Polysulfone (PSU) | Free Hanging (In-Line) | Push-Pull | Polyetheretherketone (PEEK) | 2.75 A | Gray Green | 9 | Plug Male Pins | Gold | Unshielded | Plastic | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | 120 °C | -50 °C | Backshell | 1 | Brass | IP50 - Dust Protected |
