FDMJ1023 Series

Catalog

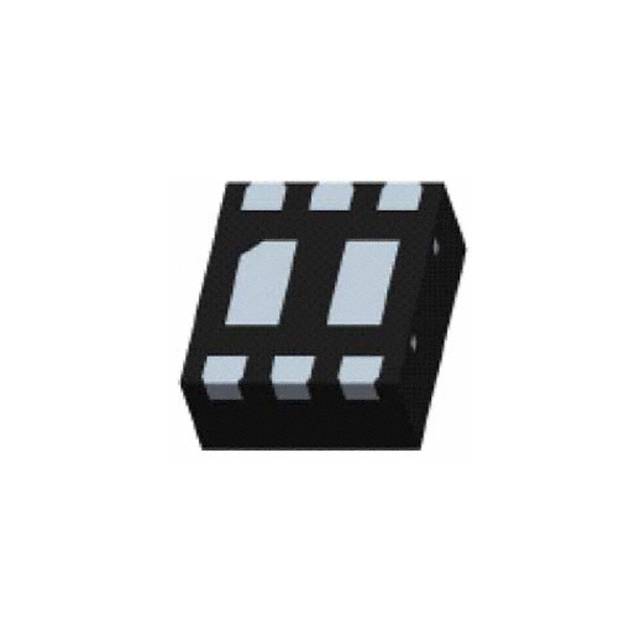

MOSFET 2P-CH 20V 2.9A SC75

Part	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Supplier Device Package	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Configuration	Technology	FET Feature	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Mounting Type	Package / Case
ON Semiconductor FDMJ1023PZ	112 mOhm	20 V	SC-75 MicroFET	700 mW	-55 °C	150 °C	2.9 A	1 V	2 P-Channel	MOSFET (Metal Oxide)	Logic Level Gate	6.5 nC	400 pF	Surface Mount	6-WFDFN Exposed Pad
ON Semiconductor FDMJ1023PZ	112 mOhm	20 V	SC-75 MicroFET	700 mW	-55 °C	150 °C	2.9 A	1 V	2 P-Channel	MOSFET (Metal Oxide)	Logic Level Gate	6.5 nC	400 pF	Surface Mount	6-WFDFN Exposed Pad
