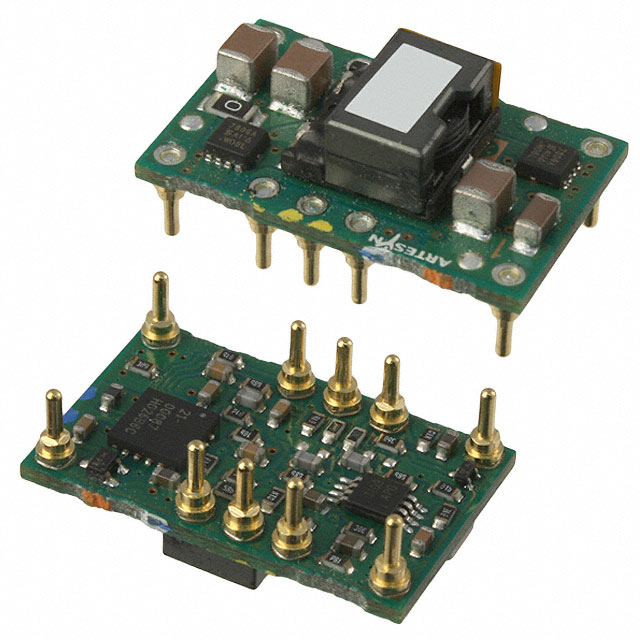

PTH12060 Series

Catalog

DC DC CONVERTER 1.2-5.5V 55W

Part	Voltage - Input (Min) [Min]	Number of Outputs	Power (Watts)	Current - Output (Max) [Max]	Mounting Type	Efficiency	Voltage - Input (Max) [Max]	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]
ARTESYN / Advanced Energy PTH12060WAD	10.8 V	1	55 W	10 A	Through Hole	94 %	13.2 V	Remote On/Off SCP UVLO	0.62 in	0.35 "	25.4 mm	8.9 mm	1 in	15.7 mm	1.2 V	5.5 V	ITE (Commercial)	85 °C	-40 C	Non-Isolated PoL Module	10-DIP Module
ARTESYN / Advanced Energy PTH12060WAZT	10.8 V	1	55 W	10 A	Surface Mount	94 %	13.2 V	Remote On/Off SCP UVLO	15.8 mm	9 mm	25.3 mm		1 in		1.2 V	5.5 V	ITE (Commercial)	85 °C	-40 C	Non-Isolated PoL Module	10-SMD Module	0.35 in	0.62 in
ARTESYN / Advanced Energy PTH12060LAZ	10.8 V	1	55 W	10 A	Surface Mount	88 %	13.2 V	Remote On/Off SCP UVLO	15.8 mm	9 mm	25.3 mm		1 in				ITE (Commercial)	85 °C	-40 C	Non-Isolated PoL Module	10-SMD Module	0.35 in	0.62 in	0.8 V	1.8 V
ARTESYN / Advanced Energy PTH12060LAZT	10.8 V	1	55 W	10 A	Surface Mount	88 %	13.2 V	Remote On/Off SCP UVLO	15.8 mm	9 mm	25.3 mm		1 in				ITE (Commercial)	85 °C	-40 C	Non-Isolated PoL Module	10-SMD Module	0.35 in	0.62 in	0.8 V	1.8 V
