DG201A Series

Catalog

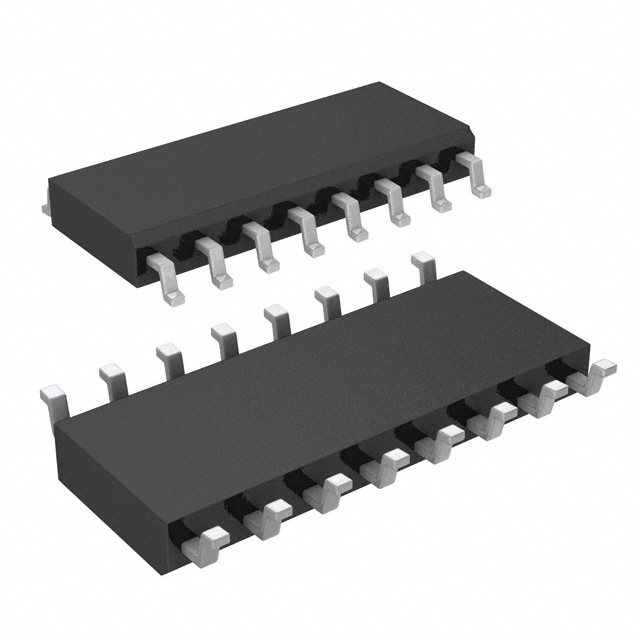

IC SW SPST-NCX4 200OHM 16SOIC

Part	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Supplier Device Package	Switch Circuit	Multiplexer/Demultiplexer Circuit	On-State Resistance (Max) [Max]	Mounting Type	Current - Leakage (IS(off)) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [x]	Package / Case [y]	Charge Injection	Number of Circuits	Voltage - Supply, Dual (V±) [Max]	Voltage - Supply, Dual (V±) [Min]	Package / Case	Package / Case
Analog Devices Inc./Maxim Integrated DG201ADY	450 ns	600 ns	5 pF	5 pF	16-SOIC	SPST - NC	1:1	200 Ohm	Surface Mount	5 nA	85 °C	-40 °C	16-SOIC	0.154 in	3.9 mm	20 pC	4	18 V	-4.5 V
Analog Devices Inc./Maxim Integrated DG201ACSE	450 ns	600 ns	5 pF	5 pF	16-SOIC	SPST - NC	1:1	200 Ohm	Surface Mount	5 nA	70 °C	0 °C	16-SOIC	0.154 in	3.9 mm	20 pC	4	18 V	-4.5 V
Analog Devices Inc./Maxim Integrated DG201ADJ	450 ns	600 ns	5 pF	5 pF	16-PDIP	SPST - NC	1:1	200 Ohm	Through Hole	5 nA	85 °C	-40 °C	16-DIP			20 pC	4	18 V	-4.5 V	0.3 in	7.62 mm
Analog Devices Inc./Maxim Integrated DG201ACJ	450 ns	600 ns	5 pF	5 pF	16-PDIP	SPST - NC	1:1	200 Ohm	Through Hole	5 nA	70 °C	0 °C	16-DIP			20 pC	4	18 V	-4.5 V	0.3 in	7.62 mm
