omf-63 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

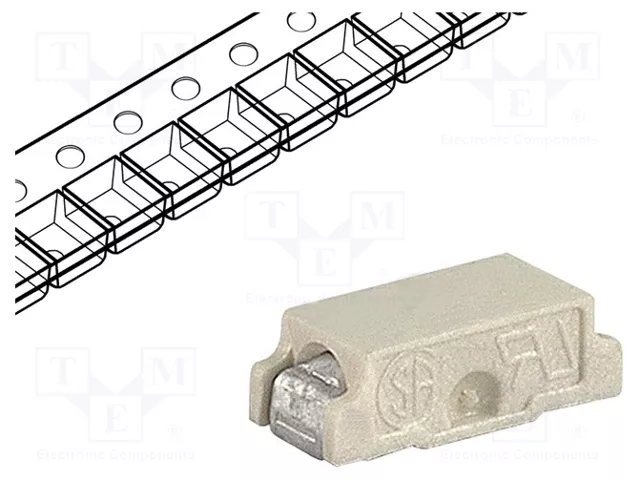

FUSE CHIP FAST ACTING 10A 63V SMD SOLDER PAD 7.4 X 3.1 X 2.6MM THERMOPLASTIC T/R CSA/UL
| Part | Package / Case | Fuse Type | Response Time | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage Rating - AC | Voltage Rating - DC | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Melting I˛t | Melting I²t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 2-SMD J-Lead | Board Mount (Cartridge Style Excluded) | Fast Blow | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 63 V | 63 VDC | 50 A | 10 A | Surface Mount | -55 C | 125 °C | ||
 SCHURTER Inc. | 2-SMD J-Lead | Board Mount (Cartridge Style Excluded) | Fast Blow | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 63 V | 63 VDC | 50 A | 350 mA | Surface Mount | -55 C | 125 °C | 0.0076 | 0.0076 |
 SCHURTER Inc. | 2-SMD J-Lead | Board Mount (Cartridge Style Excluded) | Fast Blow | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 63 V | 63 VDC | 50 A | 4 A | Surface Mount | -55 C | 125 °C | 2.1 |
