EE2-4.5 Series

Manufacturer: KEMET

Catalog

RELAY GEN PURPOSE DPDT 2A 4.5V

Part	Coil Resistance	Contact Rating (Current)	Contact Material	Relay Type	Must Release Voltage	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Switching Voltage [Max]	Release Time	Coil Voltage	Contact Form	Termination Style	Approval Agency	Must Operate Voltage	Operate Time	Load - Max Switching	Mounting Type
KEMET EE2-4.5NUH	145 Ohms	2 A	Gold Alloy Silver Alloy	General Purpose	0.45 VDC	31.1 mA	85 °C	-40 C	Non Latching	220 VDC 250 VAC	1 ms	4.5 VDC	DPDT (2 Form C)	Gull Wing	CSA TUV UL	3.38 VDC	2 ms	440 W 500 VA	Surface Mount
KEMET EE2-4.5NUX	145 Ohms	2 A	Gold Alloy Silver Alloy	General Purpose	0.45 VDC	31.1 mA	85 °C	-40 C	Non Latching	220 VDC 250 VAC	1 ms	4.5 VDC	DPDT (2 Form C)	Gull Wing	CSA TUV UL	3.38 VDC	2 ms	440 W 500 VA	Surface Mount
KEMET EE2-4.5TNUX	145 Ohms	2 A	Gold Alloy Silver Alloy	General Purpose		31.1 mA	85 °C	-40 C	Dual Coil Latching	220 VDC 250 VAC	1 ms	4.5 VDC	DPDT (2 Form C)	Gull Wing	CSA TUV UL	3.38 VDC	2 ms	440 W 500 VA	Surface Mount
KEMET EE2-4.5TNUH	145 Ohms	2 A	Gold Alloy Silver Alloy	General Purpose		31.1 mA	85 °C	-40 C	Dual Coil Latching	220 VDC 250 VAC	1 ms	4.5 VDC	DPDT (2 Form C)	Gull Wing	CSA TUV UL	3.38 VDC	2 ms	440 W 500 VA	Surface Mount
KEMET EE2-4.5NU	145 Ohms	2 A	Gold Alloy Silver Alloy	General Purpose	0.45 VDC	31.1 mA	85 °C	-40 C	Non Latching	220 VDC 250 VAC	1 ms	4.5 VDC	DPDT (2 Form C)	Gull Wing	CSA TUV UL	3.38 VDC	2 ms	440 W 500 VA	Surface Mount
KEMET EE2-4.5TNUX-L	145 Ohms	2 A	Gold Alloy Silver Alloy	General Purpose		31.1 mA	85 °C	-40 C	Dual Coil Latching	220 VDC 250 VAC	1 ms	4.5 VDC	DPDT (2 Form C)	Gull Wing	CSA TUV UL	3.38 VDC	2 ms	440 W 500 VA	Surface Mount
KEMET EE2-4.5SNUH-L	202.5 Ohms	2 A	Gold Alloy Silver Alloy	General Purpose		22.2 mA	85 °C	-40 C	Latching Single Coil	220 VDC 250 VAC	1 ms	4.5 VDC	DPDT (2 Form C)	Gull Wing	CSA TUV UL	3.38 VDC	2 ms	440 W 500 VA	Surface Mount
KEMET EE2-4.5ND	101 Ohms	2 A	Gold Alloy Silver Alloy	General Purpose	0.45 VDC	44.4 mA	85 °C	-40 C	Non Latching	220 VDC 250 VAC	1 ms	4.5 VDC	DPDT (2 Form C)	Gull Wing	CSA TUV UL	3.38 VDC	2 ms	440 W 500 VA	Surface Mount
KEMET EE2-4.5NUH-L/BKN	145 Ohms	2 A	Gold Alloy Silver Alloy	General Purpose	0.45 VDC	31.1 mA	85 °C	-40 C	Non Latching	220 VDC 250 VAC	1 ms	4.5 VDC	DPDT (2 Form C)	Gull Wing		3.38 VDC	2 ms		Surface Mount

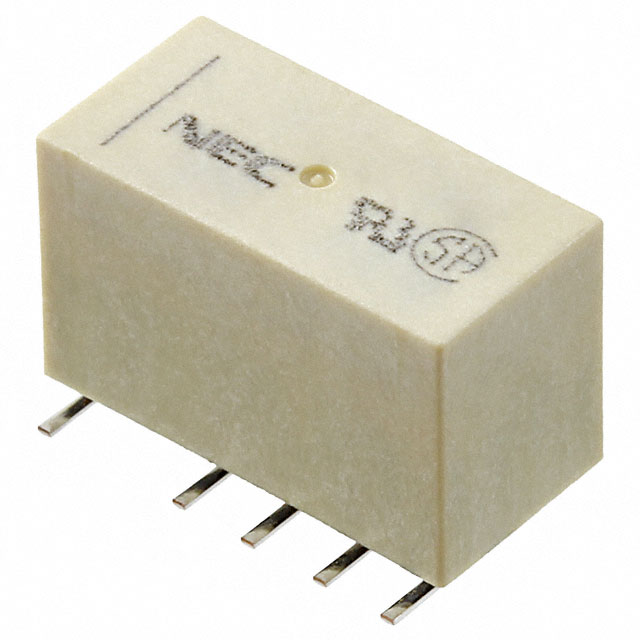

KEMET EE2-4.5TNU	145 Ohms	2 A	Gold Alloy Silver Alloy	General Purpose		31.1 mA	85 °C	-40 C	Dual Coil Latching	220 VDC 250 VAC	1 ms	4.5 VDC	DPDT (2 Form C)	Gull Wing	CSA TUV UL	3.38 VDC	2 ms	440 W 500 VA	Surface Mount
