396-040 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 40POS 0.125

...

Part	Material - Insulation	Termination Rows [custom]	Gender	Mounting Type	Contact Finish	Number of Rows [custom]	Features	Read Out	Number of Positions	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Color	Card Type	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Termination	Number of Positions/Bay/Row	Flange Feature	Contact Material	Flange Feature [diameter]	Flange Feature [diameter]	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Rows
EDAC Inc. 396-040-556-258	Polyester Thermoplastic	2	Female	Board Edge Straddle Mount	Gold	2	Card Extender Card Guides	Dual	40	3.18 mm	0.125 in	-40 C	105 ░C	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Solder	20 Bay/Row	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy
EDAC Inc. 396-040-522-808	Polyester Thermoplastic	2	Female	Through Hole	Gold	2		Dual	40	3.18 mm	0.125 in	-40 C	105 ░C	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Solder	20 Bay/Row	4-40 Threaded Insert Top Mount Opening	Copper Alloy

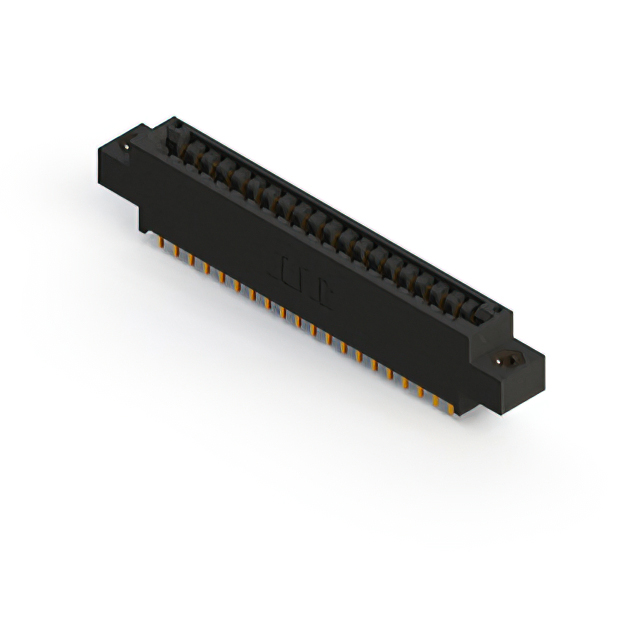

EDAC Inc. 396-040-541-808	Polyester Thermoplastic	2	Female	Through Hole	Gold	2		Dual	40	3.18 mm	0.125 in	-40 C	105 ░C	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Wire Wrap	20 Bay/Row	4-40 Threaded Insert Top Mount Opening	Copper Alloy

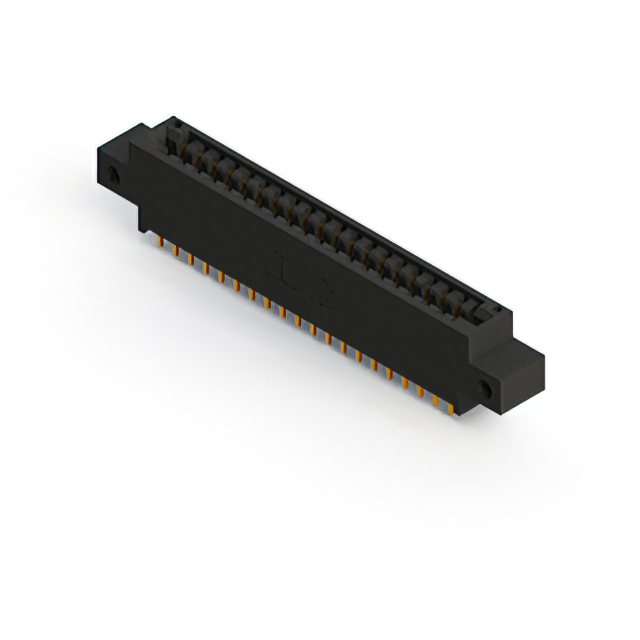

EDAC Inc. 396-040-541-812	Polyester Thermoplastic	2	Female	Through Hole	Gold	2		Dual	40	3.18 mm	0.125 in	-40 C	105 ░C	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Wire Wrap	20 Bay/Row	Side Mount Opening Unthreaded	Copper Alloy	0.128 "	3.25 mm
EDAC Inc. 396-040-559-102	Polyester Thermoplastic		Female	Right Angle Through Hole	Gold			Single	40	3.18 mm	0.125 in	-40 C	105 ░C	Black	Non Specified - Single Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Solder Wire Wrap		Flush Mount Top Opening Unthreaded	Copper Alloy	0.128 "	3.25 mm	1	40	1
EDAC Inc. 396-040-560-207	Polyester Thermoplastic	2	Female	Board Edge Straddle Mount	Gold	2	Card Extender	Dual	40	3.18 mm	0.125 in	-40 C	105 ░C	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Solder	20 Bay/Row	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy
EDAC Inc. 396-040-558-602	Polyester Thermoplastic		Female	Right Angle Through Hole	Gold			Single	40	3.18 mm	0.125 in	-40 C	105 ░C	Black	Non Specified - Single Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Solder Wire Wrap			Copper Alloy	0.128 "	3.25 mm	1	40	1

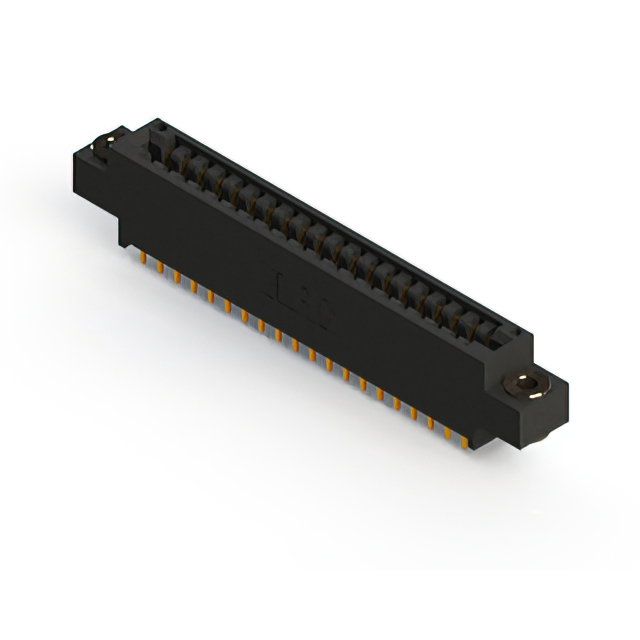

EDAC Inc. 396-040-522-803	Polyester Thermoplastic	2	Female	Through Hole	Gold	2		Dual	40	3.18 mm	0.125 in	-40 C	105 ░C	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Solder	20 Bay/Row	Floating Bobbin Top Mount Opening	Copper Alloy	0.116 "	2.95 mm

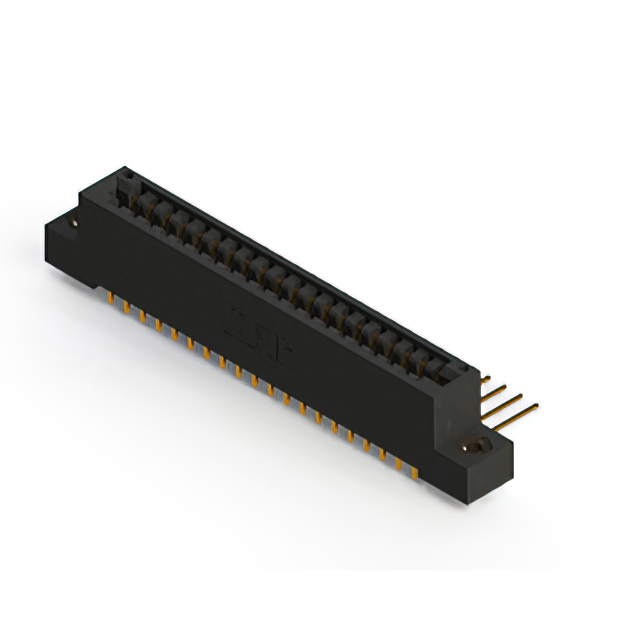

EDAC Inc. 396-040-558-208	Polyester Thermoplastic	2	Female	Right Angle Through Hole	Gold	2		Dual	40	3.18 mm	0.125 in	-40 C	105 ░C	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Solder Wire Wrap	20 Bay/Row	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy
EDAC Inc. 396-040-541-602	Polyester Thermoplastic		Female	Through Hole	Gold			Single	40	3.18 mm	0.125 in	-40 C	105 ░C	Black	Non Specified - Single Edge	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Wire Wrap			Copper Alloy	0.128 "	3.25 mm	1	40	1
