C3EEG-3 Series

Catalog

IDC CABLE - CCE34G/AE34G/CCE34G

Part	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Shielding	Contact Finish	Number of Rows [custom]	Pitch - Cable	Pitch - Cable	Connector Type	Cable Termination	Pitch - Connector	Pitch - Connector	Length	Length [x]	Length [x]	Color

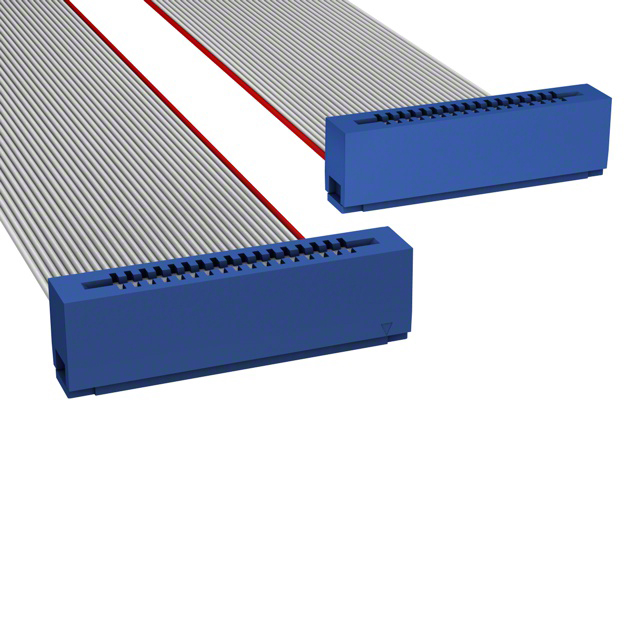

CW Industries C3EEG-3436G	34	0.25 Ám	10 Áin	91.44 cm	3 ft	Unshielded	Gold	2	0.05 in	1.27 mm	Card Edge to Card Edge	IDC	0.1 in	2.54 mm
CW Industries C3EEG-3406G	34	0.25 Ám	10 Áin	152.4 mm	0.5 '	Unshielded	Gold	2	0.05 in	1.27 mm	Card Edge to Card Edge	IDC	0.1 in	2.54 mm	6 "
CW Industries C3EEG-3418G	34	0.25 Ám	10 Áin			Unshielded	Gold	2	0.05 in	1.27 mm	Card Edge to Card Edge	IDC	0.1 in	2.54 mm		457.2 mm	1.5 ft

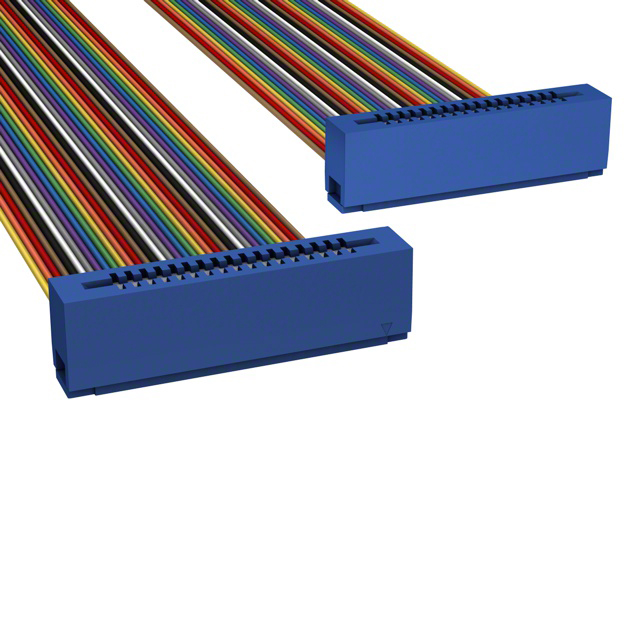

CW Industries C3EEG-3406M	34	0.25 Ám	10 Áin	152.4 mm	0.5 '	Unshielded	Gold	2	0.05 in	1.27 mm	Card Edge to Card Edge	IDC	0.1 in	2.54 mm	6 "			Multiple Ribbon
CW Industries C3EEG-3418M	34	0.25 Ám	10 Áin			Unshielded	Gold	2	0.05 in	1.27 mm	Card Edge to Card Edge	IDC	0.1 in	2.54 mm		457.2 mm	1.5 ft	Multiple Ribbon
CW Industries C3EEG-3436M	34	0.25 Ám	10 Áin	91.44 cm	3 ft	Unshielded	Gold	2	0.05 in	1.27 mm	Card Edge to Card Edge	IDC	0.1 in	2.54 mm				Multiple Ribbon
