C30724 Series
Manufacturer: Excelitas Technologies
Beta
⌘K

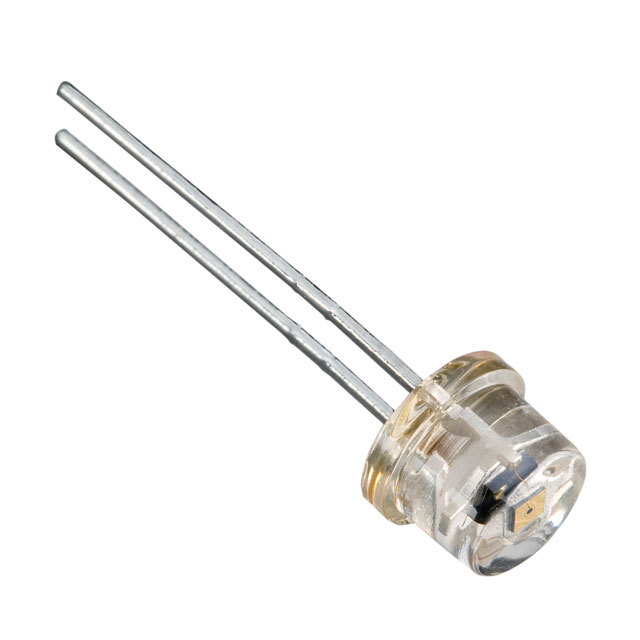

SENSOR PHOTODIODE 920NM TO18-2
| Part | Diode Type | Spectral Range [Max] | Spectral Range [Min] | Responsivity @ nm | Voltage - DC Reverse (Vr) (Max) [Max] | Response Time | Wavelength | Current - Dark (Typ) | Package / Case | Active Area [diameter] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Excelitas Technologies | Avalanche | 1100 nm | 400 nm | 8.5 A/W | 350 V | 5 ns | 920 nm | 20 nA | TO-18-2 Metal Can | 0.5 mm | Through Hole | -20 ░C | 60 °C |
