BH16NB Series

Catalog

SWITCH PB SPST 1A 125V

Part	Electrical Life	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination Style	Type	Mounting Type	Illumination Type, Color	Circuit	Actuator Type	Illumination Voltage (Nominal)	Switch Function	Features	Color - Actuator/Cap	Voltage Rating - DC	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Marking
CIT Relay and Switch BH16NBSBB	50000 Cycles	IP67 - Dust Tight Waterproof	55 °C	-25 °C	1 A 2 A	Solder Lug	Anti-Vandal Illuminated	Panel Mount Front	Blue LED	SPST	Button Flush Round	3.3 VDC	Off-Mom	Stainless Steel	Silver	36 VDC	125 V	16 mm	No Marking
CIT Relay and Switch BH16NBSBG	50000 Cycles	IP67 - Dust Tight Waterproof	55 °C	-25 °C	1 A 2 A	Solder Lug	Anti-Vandal Illuminated	Panel Mount Front	Green LED	SPST-NO	Button Flush Round	3.3 VDC	Off-Mom		Silver	36 VDC	125 V	16 mm	No Marking

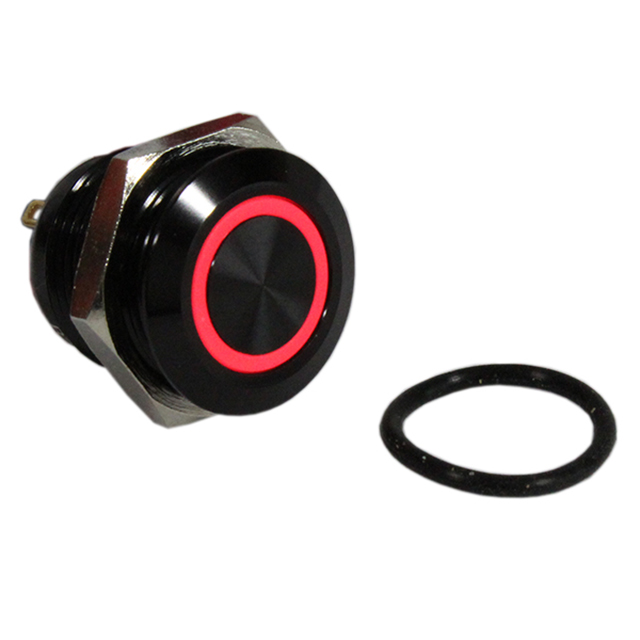

CIT Relay and Switch BH16NBBBRG	50000 Cycles	IP67 - Dust Tight Waterproof	55 °C	-25 °C	1 A 2 A	Solder Lug	Anti-Vandal Illuminated	Panel Mount Front	Green/Red LED	SPST	Button Flush Round	2.1 VDC 3.3 VDC	Off-Mom		Black	36 VDC	125 V	16 mm	No Marking

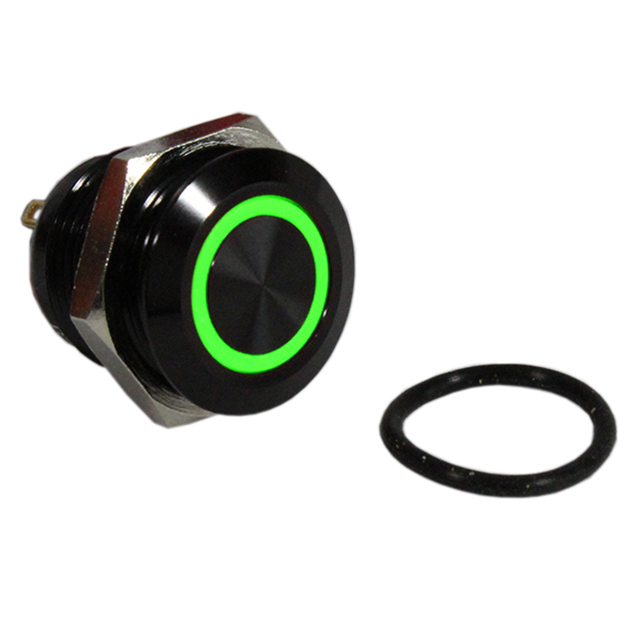

CIT Relay and Switch BH16NBBBG	50000 Cycles	IP67 - Dust Tight Waterproof	55 °C	-25 °C	1 A 2 A	Solder Lug	Anti-Vandal Illuminated	Panel Mount Front	Green LED	SPST	Button Flush Round	3.3 VDC	Off-Mom		Black	36 VDC	125 V	16 mm	No Marking

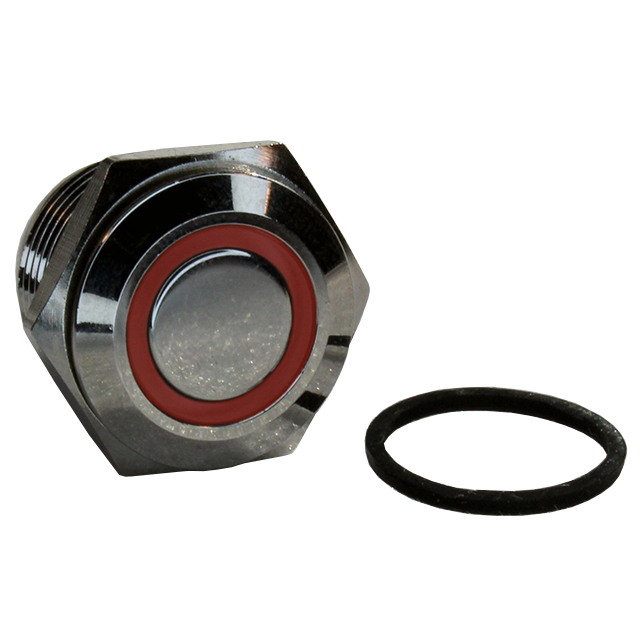

CIT Relay and Switch BH16NBSBRG	50000 Cycles	IP67 - Dust Tight Waterproof	55 °C	-25 °C	1 A 2 A	Solder Lug	Anti-Vandal Illuminated	Panel Mount Front	Green/Red LED	SPST	Button Flush Round	2.1 VDC 3.3 VDC	Off-Mom	Stainless Steel	Silver	36 VDC	125 V	16 mm	No Marking
CIT Relay and Switch BH16NBBBB	50000 Cycles	IP67 - Dust Tight Waterproof	55 °C	-25 °C	1 A 2 A	Solder Lug	Anti-Vandal Illuminated	Panel Mount Front	Blue LED	SPST	Button Flush Round	3.3 VDC	Off-Mom		Black	36 VDC	125 V	16 mm	No Marking
CIT Relay and Switch BH16NBBBR	50000 Cycles	IP67 - Dust Tight Waterproof	55 °C	-25 °C	1 A 2 A	Solder Lug	Anti-Vandal Illuminated	Panel Mount Front	LED Red	SPST	Button Flush Round	2.1 VDC	Off-Mom		Black	36 VDC	125 V	16 mm	No Marking
