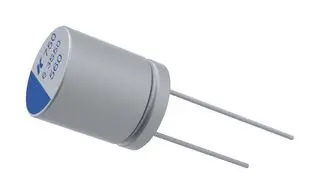

A750KS Series

Manufacturer: KEMET

Catalog

CAP, 680ΜF, 10V, 20% ROHS COMPLIANT: YES

Part	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Lead Spacing	Lead Spacing	Mounting Type	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Ripple Current @ High Frequency	Applications	Package / Case	Type	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated
KEMET A750KS687M1AAAE014	205 mA	0.315 in	8 mm	20 %	0.138 in	3.5 mm	Through Hole	2000 Hrs	14 mOhms	4.1 A	General Purpose	Can Radial	Polymer	-55 C	105 ░C	680 µF	0.512 "	13 mm	10 V
KEMET A750KS477M1CAAE013	205 mA	0.315 in	8 mm	20 %	0.138 in	3.5 mm	Through Hole	2000 Hrs	13 mOhms	4.1 A	General Purpose	Can Radial	Polymer	-55 C	105 ░C	470 µF	0.512 "	13 mm	16 V
KEMET A750KS128M0JAAE014	205 mA	0.315 in	8 mm	20 %	0.138 in	3.5 mm	Through Hole	2000 Hrs	14 mOhms	4.1 A	General Purpose	Can Radial	Polymer	-55 C	105 ░C	1.2 mF	0.512 "	13 mm	6.3 VDC
KEMET A750KS827M1AAAE014	205 mA	0.315 in	8 mm	20 %	0.138 in	3.5 mm	Through Hole	2000 Hrs	14 mOhms	4.1 A	General Purpose	Can Radial	Polymer	-55 C	105 ░C	820 µF	0.512 "	13 mm	10 V
KEMET A750KS567M1CAAE013	240 mA	0.315 in	8 mm	20 %	0.138 in	3.5 mm	Through Hole	2000 Hrs	13 mOhms	4.8 A	General Purpose	Can Radial	Polymer	-55 C	105 ░C	560 µF	0.512 "	13 mm	16 V
KEMET A750KS227M1EAAE015	221 mA	0.315 in	8 mm	20 %	0.138 in	3.5 mm	Through Hole	2000 Hrs	15 mOhm	4.42 A	General Purpose	Can Radial	Polymer	-55 C	105 ░C	220 µF	0.512 "	13 mm	25 VDC
KEMET A750KS337M1EAAE018	175 mA	0.315 in	8 mm	20 %	0.138 in	3.5 mm	Through Hole	2000 Hrs		3.5 A	General Purpose	Can Radial	Polymer	-55 C	105 ░C	330 µF	0.512 "	13 mm	25 VDC
