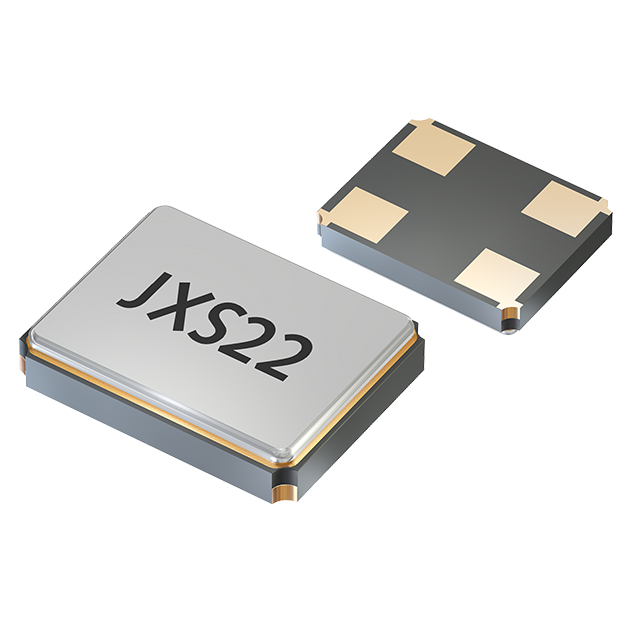

JXS22 Series

Catalog

CRYSTAL 52.0000MHZ 8PF SMD

...

Part	Package / Case	Operating Mode	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Load Capacitance	Frequency Tolerance	Frequency Stability	Type	Frequency
Jauch Quartz Q 52,0-JXS22-8-10/15-T1-FU-WA-LF	4-SMD No Lead	Fundamental	0.6 mm	0.024 in	40 Ohms	85 °C	-40 C	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	8 pF	10 ppm	15 ppm	MHz Crystal	52 MHz
Jauch Quartz Q 27,120-JXS22-8-10/10-FU-WA-LF	4-SMD No Lead	Fundamental	0.6 mm	0.024 in	50 Ohms	70 °C	-20 ░C	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	8 pF	10 ppm	10 ppm	MHz Crystal	27.12 MHz
Jauch Quartz Q 27,120-JXS22-10-10/15-T1-FU-WA-LF	4-SMD No Lead	Fundamental	0.6 mm	0.024 in	50 Ohms	85 °C	-40 C	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	10 pF	10 ppm	15 ppm	MHz Crystal	27.12 MHz
Jauch Quartz Q 32,0-JXS22-10-10/10-FU-WA-LF	4-SMD No Lead	Fundamental	0.6 mm	0.024 in	50 Ohms	70 °C	-20 ░C	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	10 pF	10 ppm	10 ppm	MHz Crystal	32 MHz
Jauch Quartz Q 52,0-JXS22-12-10/15-T1-FU-WA-LF	4-SMD No Lead	Fundamental	0.6 mm	0.024 in	40 Ohms	85 °C	-40 C	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	12 pF	10 ppm	15 ppm	MHz Crystal	52 MHz
Jauch Quartz Q 26,0-JXS22-9-10/15-T1-FU-WA-LF	4-SMD No Lead	Fundamental	0.6 mm	0.024 in	50 Ohms	85 °C	-40 C	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	9 pF	10 ppm	15 ppm	MHz Crystal	26 MHz
Jauch Quartz Q 52,0-JXS22-12-10/10-FU-WA-LF	4-SMD No Lead	Fundamental	0.6 mm	0.024 in	40 Ohms	70 °C	-20 ░C	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	12 pF	10 ppm	10 ppm	MHz Crystal	52 MHz
Jauch Quartz Q 48,0-JXS22-12-10/10-FU-WA-LF	4-SMD No Lead	Fundamental	0.6 mm	0.024 in	40 Ohms	70 °C	-20 ░C	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	12 pF	10 ppm	10 ppm	MHz Crystal	48 MHz
Jauch Quartz Q 26,0-JXS22-9-10/10-FU-WA-LF	4-SMD No Lead	Fundamental	0.6 mm	0.024 in	50 Ohms	70 °C	-20 ░C	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	9 pF	10 ppm	10 ppm	MHz Crystal	26 MHz
Jauch Quartz Q 27,120-JXS22-10-10/10-FU-WA-LF	4-SMD No Lead	Fundamental	0.6 mm	0.024 in	50 Ohms	70 °C	-20 ░C	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	10 pF	10 ppm	10 ppm	MHz Crystal	27.12 MHz
