ECK-DNA Series

Catalog

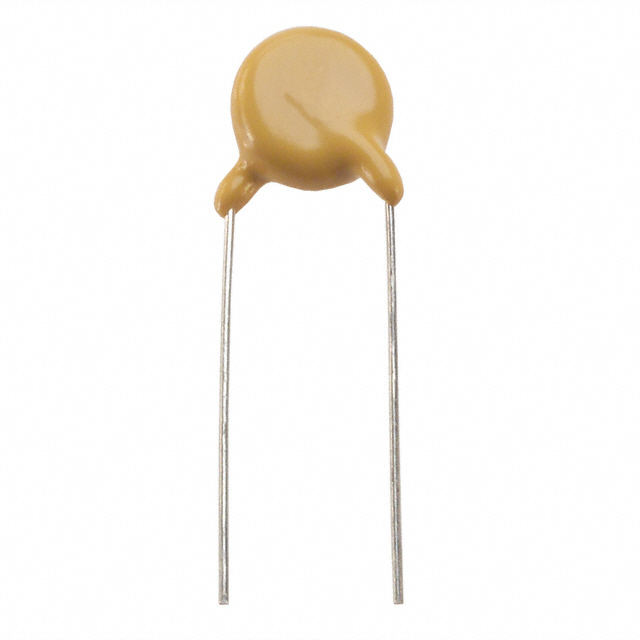

CAP CER 1500PF 250VAC Y5U RADIAL

Part	Mounting Type	Tolerance	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Ratings [custom]	Ratings [custom]	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Lead Spacing	Lead Spacing	Package / Case	Applications	Lead Style	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension
Panasonic Electronic Components ECK-DNA152ME	Through Hole	20 %	1500 pF	0.433 "	11 mm	X1	Y1	Y5U (E)	85 °C	-25 °C	14 mm	0.551 in	250 V	0.394 in	10 mm	Disc Radial	Safety	Straight
Panasonic Electronic Components ECK-DNA221MB	Through Hole	20 %	220 pF	0.433 "	11 mm	X1	Y1	Y5P (B)	85 °C	-25 °C	14 mm	0.551 in	250 V	0.394 in	10 mm	Disc Radial	Safety	Straight
Panasonic Electronic Components ECK-DNA222ME	Through Hole	20 %	2200 pF	0.433 "	11 mm	X1	Y1	Y5U (E)	85 °C	-25 °C	14 mm	0.551 in	250 V	0.394 in	10 mm	Disc Radial	Safety	Straight
Panasonic Electronic Components ECK-DNA102MB	Through Hole	20 %	0.001 µF	0.433 "	11 mm	X1	Y1	Y5P (B)	85 °C	-25 °C	14 mm	0.551 in	250 V	0.394 in	10 mm	Disc Radial	Safety	Straight
Panasonic Electronic Components ECK-DNA471MB	Through Hole	20 %	470 pF	0.433 "	11 mm	X1	Y1	Y5P (B)	85 °C	-25 °C	14 mm	0.551 in	250 V	0.394 in	10 mm	Disc Radial	Safety	Straight

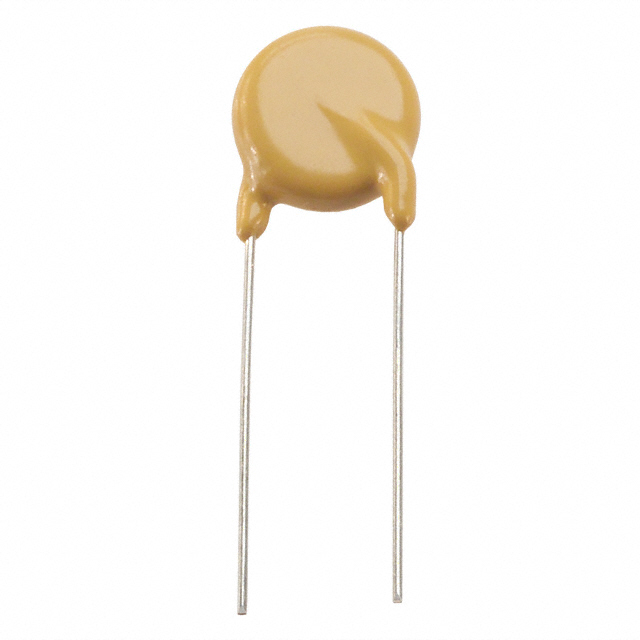

Panasonic Electronic Components ECK-DNA332ME	Through Hole	20 %	0.0033 µF	0.512 in		X1	Y1	Y5U (E)	85 °C	-25 °C			250 V	0.394 in	10 mm	Disc Radial	Safety	Straight	16 mm	0.63 in	13 mm
