S822 Series

Catalog

SWITCH TOGGLE DPDT 30A 125V

Part	Electrical Life	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Actuator Type	Illumination	Switch Function	Mounting Type	Circuit	Bushing Thread	Voltage Rating - DC	Voltage Rating - AC	Current Rating (Amps)	Features

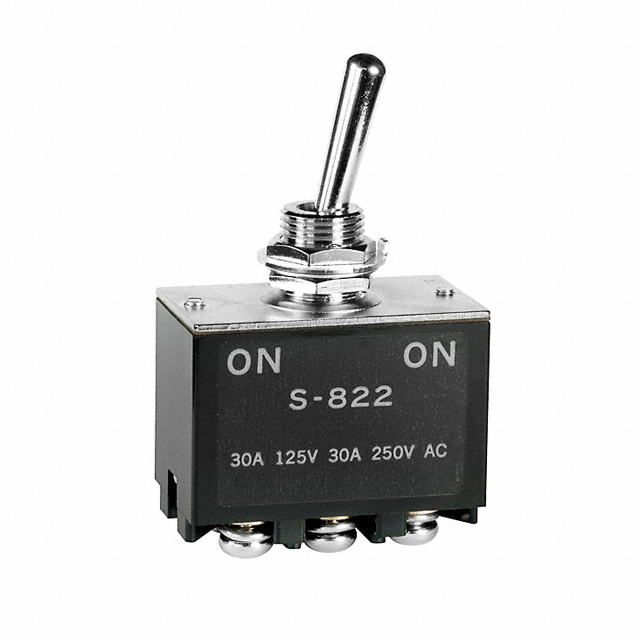

NKK Switches S822/U	25000 Steps	Brass Chrome Plated	70 °C	-10 °C	Screw Terminal	12.5 mm	22 mm	Standard Round	Non-Illuminated	On-On	Panel Mount	DPDT	M12 x 1	30 V	125 V	30 A
NKK Switches S822/328	25000 Steps	Brass Chrome Plated	70 °C	-30 ░C	Screw Terminal	12.5 mm	22 mm	Standard Round	Non-Illuminated	On-On	Panel Mount	DPDT	M12 x 1	30 V	125 V	30 A	Low Temperature Lubricant
NKK Switches S822/C	25000 Steps	Brass Chrome Plated	70 °C	-10 °C	Screw Terminal	12.5 mm	22 mm	Standard Round	Non-Illuminated	On-On	Panel Mount	DPDT	M12 x 1	30 V	125 V	30 A
NKK Switches S822-AT401S	25000 Steps	Brass Chrome Plated	70 °C	-10 °C	Screw Terminal	12.5 mm	22 mm	Standard Round	Non-Illuminated	On-On	Panel Mount	DPDT	M12 x 1	30 V	125 V	30 A
