2317223 Series

Catalog

12P,2MM,REC,IDC,LRAMP,26-30,STRI

Part	Color	Fastening Type	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Type	Wire Type	Number of Positions	Contact Finish

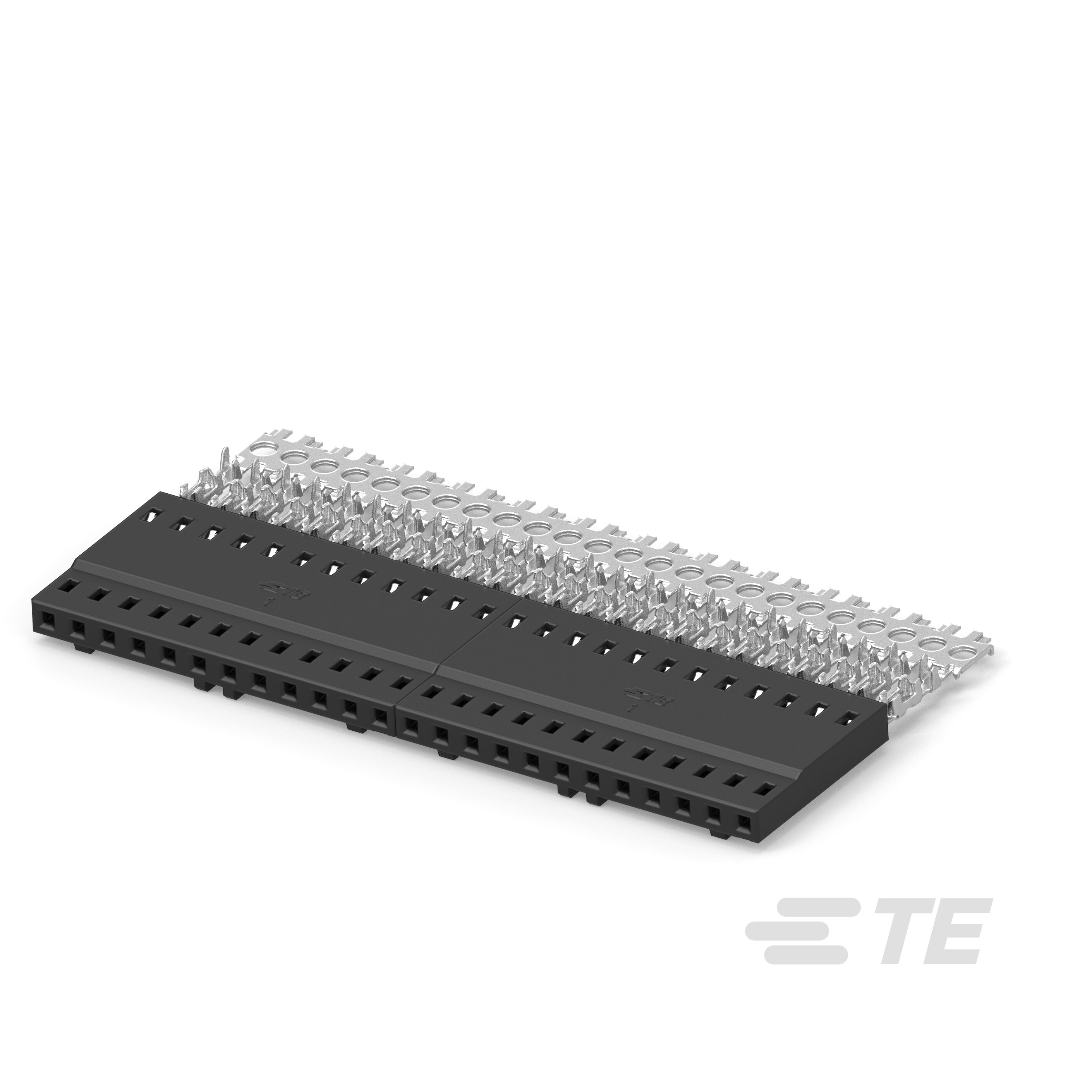

TE Connectivity Raychem Cable Protection 1-2317223-2	Black	Push-Pull	26 AWG	30 AWG	0.079 in	2 mm	1	Free Hanging (In-Line)	IDC	50 µin	1.27 µm	Receptacle	Female Socket	Discrete or Ribbon Cable	12	Tin

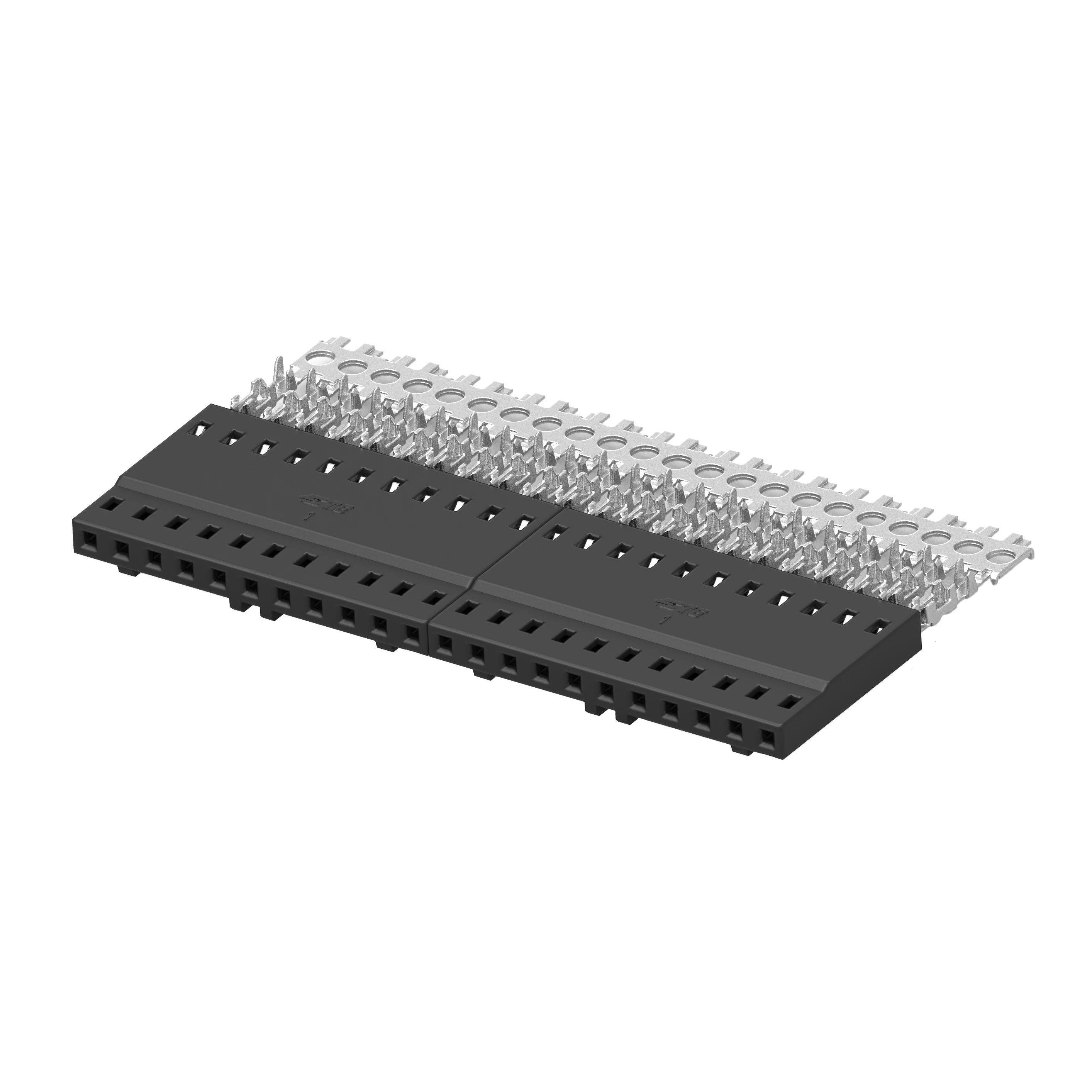

TE Connectivity Raychem Cable Protection 1-2317223-1	Black	Push-Pull	26 AWG	30 AWG	0.079 in	2 mm	1	Free Hanging (In-Line)	IDC	50 µin	1.27 µm	Receptacle	Female Socket	Discrete or Ribbon Cable	11	Tin

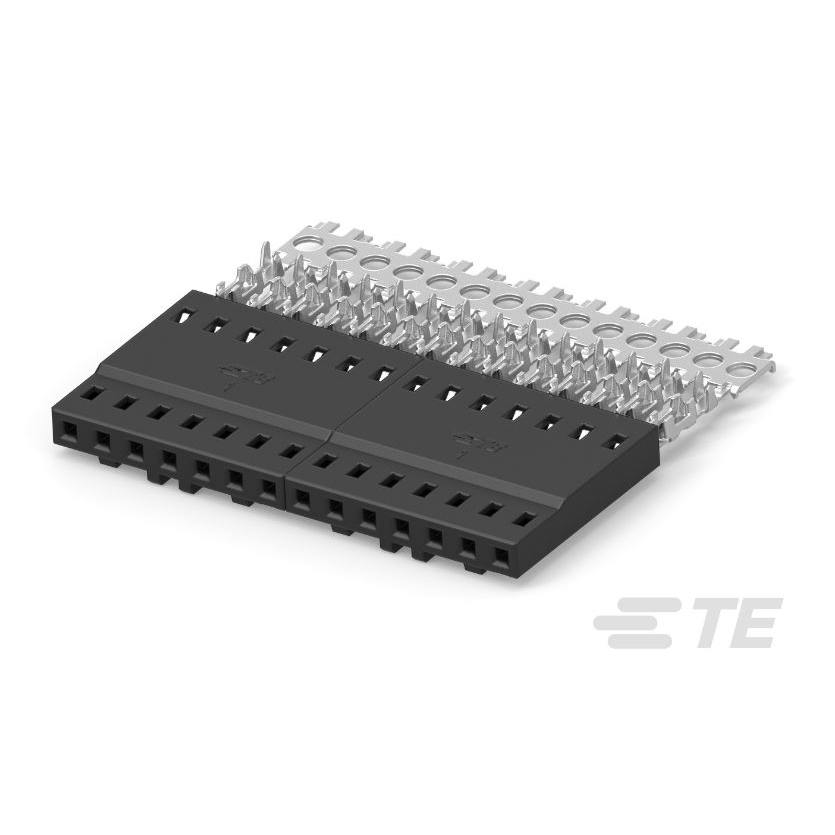

TE Connectivity Raychem Cable Protection 2317223-7	Black	Push-Pull	26 AWG	30 AWG	0.079 in	2 mm	1	Free Hanging (In-Line)	IDC	50 µin	1.27 µm	Receptacle	Female Socket	Discrete or Ribbon Cable	7	Tin
TE Connectivity Raychem Cable Protection 2317223-8	Black	Push-Pull	26 AWG	30 AWG	0.079 in	2 mm	1	Free Hanging (In-Line)	IDC	50 µin	1.27 µm	Receptacle	Female Socket	Discrete or Ribbon Cable	8	Tin
