CABLE 385 Series
Manufacturer: GCT
Beta
⌘K

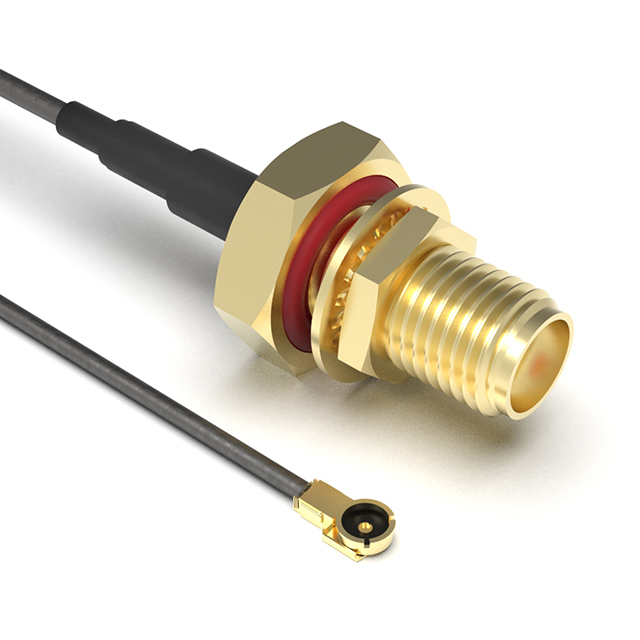

CBL ASSY SMA-MHF4L JCK-PL 7.874"
| Part | 1st Connector Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Cable Impedance | 1st Connector | 2nd Connector Mounting Type | Style | 1st Connector Mounting Feature | Ingress Protection | Frequency - Max [Max] | Overall Impedance | 2nd Connector | Length | Length | Cable Type | Cable Type [diameter] | Color | 2nd Contact Gender | 1st Contact Gender | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panel Mount | 85 °C | -40 C | 50 Ohms | SMA Jack | Free Hanging (In-Line) | SMA to IPEX MHF4L | Bulkhead - Front Side Nut | IP67/IP68 | 6000 MHz | 50 Ohms | IPEX MHF4L Plug Right Angle | 200 mm | 7.874 in | Coaxial Cable | 1.13 mm | Black | Female | Female | IP Rated Unmated | |
Panel Mount | 85 °C | -40 C | 50 Ohms | SMA Jack | Free Hanging (In-Line) | SMA to I-PEX MHF4L | Bulkhead - Front Side Nut | IP67/IP68 | 6000 MHz | 50 Ohms | I-PEX MHF4L Plug Right Angle | 200 mm | 7.874 in | Coaxial Cable | 1.13 mm | Black | Female | Female | IP Rated Unmated |
