SRD1-2F Series
Manufacturer: Switch Components
Beta
⌘K
VAC SEALED IP67, DPDT ON-OFF-ON
| Part | Mounting Type | Ingress Protection | Current Rating (Amps) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination Style | Actuator Marking | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Color - Actuator/Cap | Actuator Type | Switch Function | Electrical Life | Mechanical Life | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

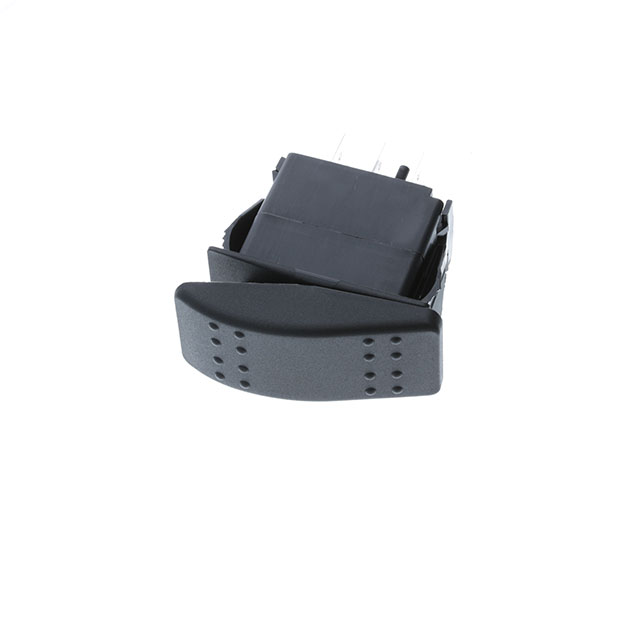

 Switch Components | Panel Mount Snap-In | IP56 - Dust Protected Water Resistant | 20 A | 36.8 mm | 21.2 mm | Quick Connect - 0.250" (6.3mm) | No Marking | 125 V | 85 °C | -25 °C | DPDT | Black | Convex (Reverse V) | On-Off-On | |||

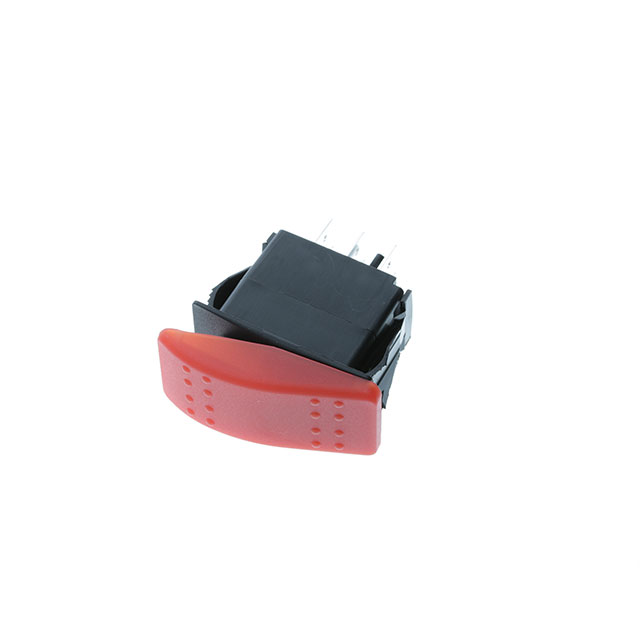

 Switch Components | Panel Mount Snap-In | IP56 - Dust Protected Water Resistant | 20 A 21 A | 36.8 mm | 21.2 mm | Quick Connect - 0.250" (6.3mm) | No Marking | 125 V | 85 °C | -25 °C | DPDT | Red | Convex (Reverse V) | On-Off-On | 6000 Cycles | 10000 Steps | 14 V |
Switch Components | Panel Mount Snap-In | IP56 - Dust Protected Water Resistant | 20 A 21 A | 36.8 mm | 21.2 mm | Quick Connect - 0.250" (6.3mm) | No Marking | 125 V | 85 °C | -25 °C | DPDT | Black | Convex (Reverse V) | On-Off-On | 6000 Cycles | 10000 Steps | 14 V |
