ADS7864 Series
500kHz, 12-Bit, 6-Channel Simultaneous Sampling Analog-To-Digital Converter
Manufacturer: Texas Instruments
Catalog
500kHz, 12-Bit, 6-Channel Simultaneous Sampling Analog-To-Digital Converter
| Part | Number of Inputs | Number of A/D Converters | Voltage - Supply, Analog | Number of Bits | Voltage - Supply, Digital | Package / Case | Input Type | Ratio - S/H:ADC | Supplier Device Package | Configuration | Features | Sampling Rate (Per Second) | Operating Temperature [Max] | Operating Temperature [Min] | Reference Type | Architecture | Mounting Type | Data Interface | Input Range [Max] | Input Range [Min] | Supplied Contents | Power (Typ) @ Conditions | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 6 | 2 | 5 V | 12 bits | 5 V | 48-TQFP | Differential | 3:1 | 48-TQFP (7x7) | S/H-MUX-ADC | Selectable Address Simultaneous Sampling | 500k | 85 °C | -40 °C | External Internal | SAR | Surface Mount | SPI | |||||
Texas Instruments | 6 | 2 | 5 V | 12 bits | 5 V | 48-TQFP | Differential | 3:1 | 48-TQFP (7x7) | S/H-MUX-ADC | Selectable Address Simultaneous Sampling | 500k | 85 °C | -40 °C | External Internal | SAR | Surface Mount | SPI | |||||
 Texas Instruments | 6 | 2 | 5 V | 12 bits | 5 V | 48-TQFP | Differential | 3:1 | 48-TQFP (7x7) | S/H-MUX-ADC | Selectable Address Simultaneous Sampling | 500k | 85 °C | -40 °C | External Internal | SAR | Surface Mount | SPI | |||||

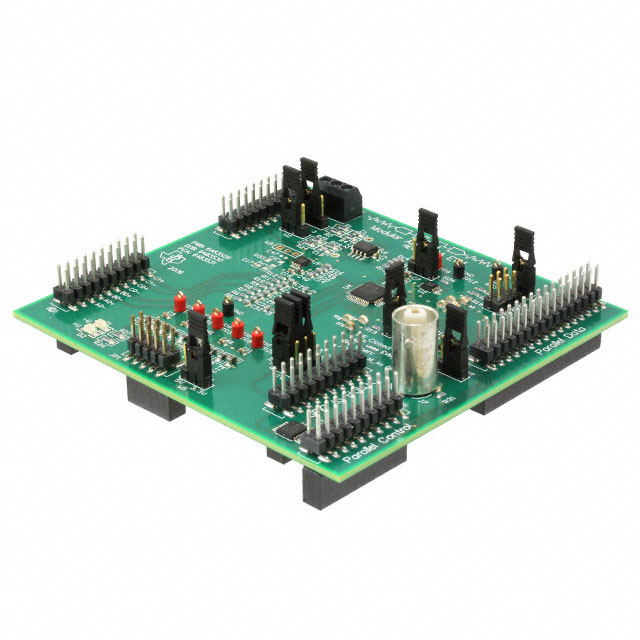

 Texas Instruments | 2 | 12 bits | 500k | Parallel | 5 V | 0 V | Board(s) | 50 mW | ADS7864 | ||||||||||||||
Texas Instruments | 6 | 2 | 5 V | 12 bits | 5 V | 48-TQFP | Differential | 3:1 | 48-TQFP (7x7) | S/H-MUX-ADC | Selectable Address Simultaneous Sampling | 500k | 85 °C | -40 °C | External Internal | SAR | Surface Mount | SPI | |||||
Texas Instruments | 6 | 2 | 5 V | 12 bits | 5 V | 48-TQFP | Differential | 3:1 | 48-TQFP (7x7) | S/H-MUX-ADC | Selectable Address Simultaneous Sampling | 500k | 85 °C | -40 °C | External Internal | SAR | Surface Mount | SPI | |||||
Texas Instruments | 6 | 2 | 5 V | 12 bits | 5 V | 48-TQFP | Differential | 3:1 | 48-TQFP (7x7) | S/H-MUX-ADC | Selectable Address Simultaneous Sampling | 500k | 85 °C | -40 °C | External Internal | SAR | Surface Mount | SPI |
Key Features
• 6 Simultaneous Sampling ChannelsFully Differential Inputs2µs Total Throughput per ChannelNo Missing CodesParallel Interface1MHz Effective Sampling RateLow Power: 50mW6X FIFOAPPLICATIONSMotor ControlMulti-Axis Positioning Systems3-Phase Power Control6 Simultaneous Sampling ChannelsFully Differential Inputs2µs Total Throughput per ChannelNo Missing CodesParallel Interface1MHz Effective Sampling RateLow Power: 50mW6X FIFOAPPLICATIONSMotor ControlMulti-Axis Positioning Systems3-Phase Power Control
Description
AI
The ADS7864 is a dual 12-bit, 500kHz analog-to-digital (A/D) converter with 6 fully differential input channels grouped into three pairs for high speed simultaneous signal acquisition. Inputs to the sample-and-hold amplifiers are fully differential and are maintained differential to the input of the A/D converter. This provides excellent common-mode rejection of 80dB at 50kHz which is important in high noise environments.
The ADS7864 offers a parallel interface and control inputs to minimize software overhead. The output data for each channel is available as a 16-bit word (address and data). The ADS7864 is offered in a TQFP-48 package and is fully specified over the -40°C to +85°C operating range.
The ADS7864 is a dual 12-bit, 500kHz analog-to-digital (A/D) converter with 6 fully differential input channels grouped into three pairs for high speed simultaneous signal acquisition. Inputs to the sample-and-hold amplifiers are fully differential and are maintained differential to the input of the A/D converter. This provides excellent common-mode rejection of 80dB at 50kHz which is important in high noise environments.
The ADS7864 offers a parallel interface and control inputs to minimize software overhead. The output data for each channel is available as a 16-bit word (address and data). The ADS7864 is offered in a TQFP-48 package and is fully specified over the -40°C to +85°C operating range.
