MS3116F20 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K

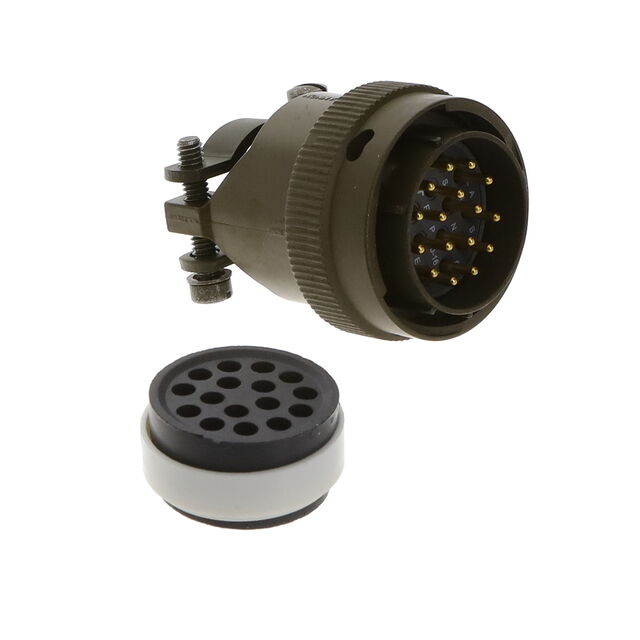

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3116 SERIES, STRAIGHT PLUG, 16 CONTACTS, SOLDER PIN
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Contact Finish - Mating | Features | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Fastening Type | Current Rating (Amps) | Shell Material | Number of Positions | Color | Connector Type | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Shell Finish | Orientation | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | 50 µin | 1.27 µm | Environment Resistant | Gold | Strain Relief | 16 | 20 | Bayonet Lock | 13 A | Aluminum Alloy | 16 | Olive Drab | Plug Male Pins | Metal | -55 C | 125 °C | Free Hanging (In-Line) | Olive Drab Cadmium | N (Normal) | 1000 VAC 1400 V |
