PLB4G Series

Catalog

CIRCULAR

...

Part	Applications	Contact Material	Shell Material	Number of Positions	Mounting Type	Orientation	Mounting Feature	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Mating	Shielding	Color	Ingress Protection	Primary Material	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Orientation [custom]	Orientation [custom]
ITT Cannon, LLC PLB4G620E06	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	6	Panel Mount	E	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)	0.51 µm	20 µin	Latch Lock Push-Pull	Gold	Unshielded	Blue Gray	IP50 - Dust Protected	Plastic	6 A	150 °C	-50 °C	Receptacle Female Sockets

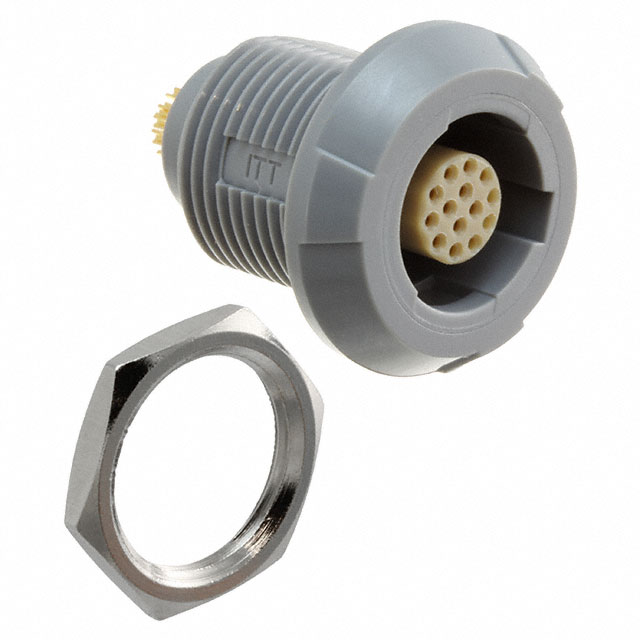

ITT Cannon, LLC PLB4G820014	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	14	Panel Mount		Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)	0.51 µm	20 µin	Latch Lock Push-Pull	Gold	Unshielded	Gray	IP50 - Dust Protected	Plastic	2 A	150 °C	-50 °C	Receptacle Female Sockets	0 °
ITT Cannon, LLC PLB4G420E14	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	14	Panel Mount	E	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)	0.51 µm	20 µin	Latch Lock Push-Pull	Gold	Unshielded	Gray Yellow	IP50 - Dust Protected	Plastic	2 A	150 °C	-50 °C	Receptacle Female Sockets

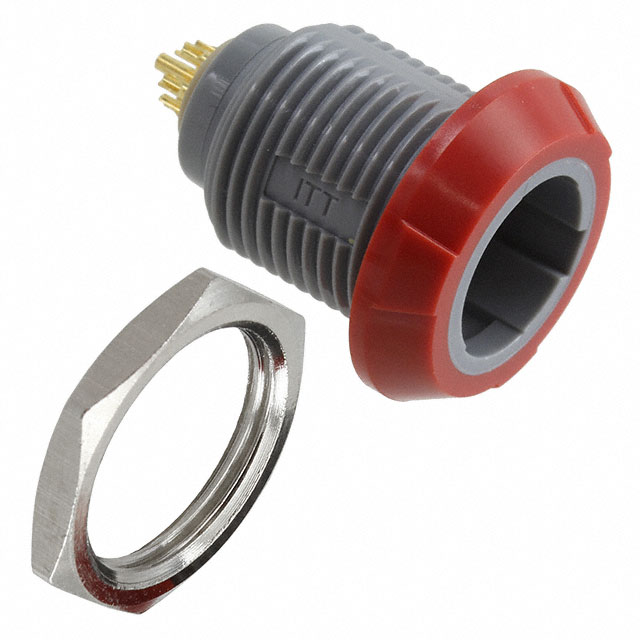

ITT Cannon, LLC PLB4G220007	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	7	Panel Mount		Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)	0.51 µm	20 µin	Latch Lock Push-Pull	Gold	Unshielded	Gray Red	IP50 - Dust Protected	Plastic	5 A	150 °C	-50 °C	Receptacle Female Sockets	0 °
ITT Cannon, LLC PLB4G420J09	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	9	Panel Mount		Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)	0.51 µm	20 µin	Latch Lock Push-Pull	Gold	Unshielded	Gray Yellow	IP50 - Dust Protected	Plastic	3 A	150 °C	-50 °C	Receptacle Female Sockets		J
ITT Cannon, LLC PLB4G620A09	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	9	Panel Mount	A	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)	0.51 µm	20 µin	Latch Lock Push-Pull	Gold	Unshielded	Blue Gray	IP50 - Dust Protected	Plastic	3 A	150 °C	-50 °C	Receptacle Female Sockets
ITT Cannon, LLC PLB4G420H10	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	10	Panel Mount	H	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)	0.51 µm	20 µin	Latch Lock Push-Pull	Gold	Unshielded	Gray Yellow	IP50 - Dust Protected	Plastic	3 A	150 °C	-50 °C	Receptacle Female Sockets
ITT Cannon, LLC PLB4G020C03	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)		Panel Mount	C	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)	0.51 µm	20 µin	Latch Lock Push-Pull	Gold	Unshielded		IP50 - Dust Protected	Plastic	10 A	150 °C	-50 °C	Receptacle Female Sockets
ITT Cannon, LLC PLB4G420A02	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)	2	Panel Mount	A	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)	0.51 µm	20 µin	Latch Lock Push-Pull	Gold	Unshielded	Gray Yellow	IP50 - Dust Protected	Plastic	10 A	150 °C	-50 °C	Receptacle Female Sockets
ITT Cannon, LLC PLB4G820H03	Industrial Medical Testing Equipment & Measurement	Copper Alloy	Polysulfone (PSU)		Panel Mount	H	Bulkhead - Front or Rear Side Nut	Polyetheretherketone (PEEK)	0.51 µm	20 µin	Latch Lock Push-Pull	Gold	Unshielded	Gray	IP50 - Dust Protected	Plastic	10 A	150 °C	-50 °C	Receptacle Female Sockets
