PGSA Series

Catalog

BUSHING SPLIT 0.693" NYLON BLACK

Part	Features	Color	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	For Use With/Related Products	Material Flammability Rating	Bushing, Grommet Type	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Material	Diameter - Inside [diameter]	Panel Thickness [Max]
Essentra Components PGSA-1822A	Snap-Mount	Black	17.6 mm	0.693 in	1.6 mm	0.031 "	0.063 "	0.79 mm	Cable Wires	UL94 V-2	Bushing Split	22 mm	0.866 in	Polyamide (PA66) Nylon 6/6
Essentra Components PGSA-2024A	Snap-Mount	Black	19.5 mm		1.6 mm	0.039 in	0.063 "	0.99 mm	Cable Wires	UL94 V-2	Bushing Split	24 mm	0.945 in	Polyamide (PA66) Nylon 6/6	0.768 in

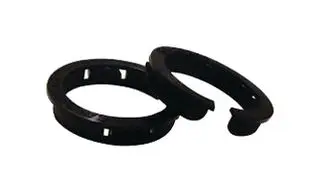

Essentra Components PGSA-0407A	Snap-Mount	Black			1 mm	0.016 in	0.039 in	0.4 mm	Cable Wires	UL94 V-2	Bushing Split	7 mm	0.276 in	Polyamide (PA66) Nylon 6/6

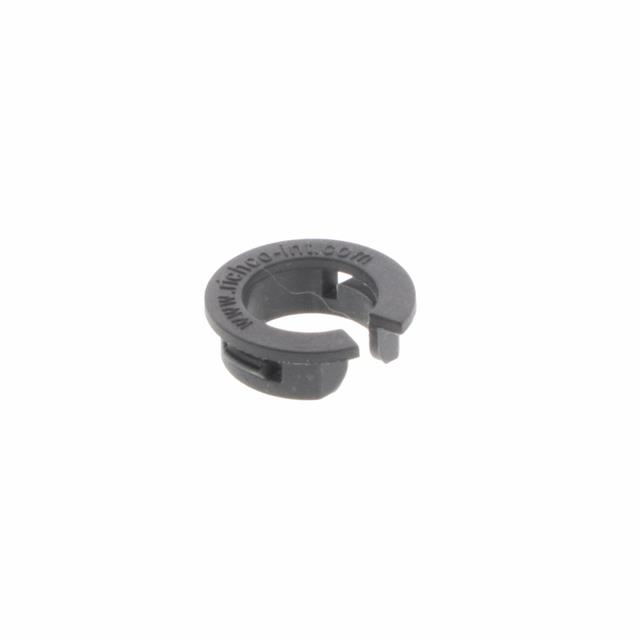

Essentra Components PGSA-1013A	Snap-Mount	Black	9.2 mm	0.362 "		0.039 in	0.059 in	0.99 mm	Cable Wires	UL94 V-2	Bushing Split	13 mm	0.512 in	Polyamide (PA66) Nylon 6/6		1.5 mm
