XSCGS43 Series
Manufacturer: SunLED
Beta
⌘K

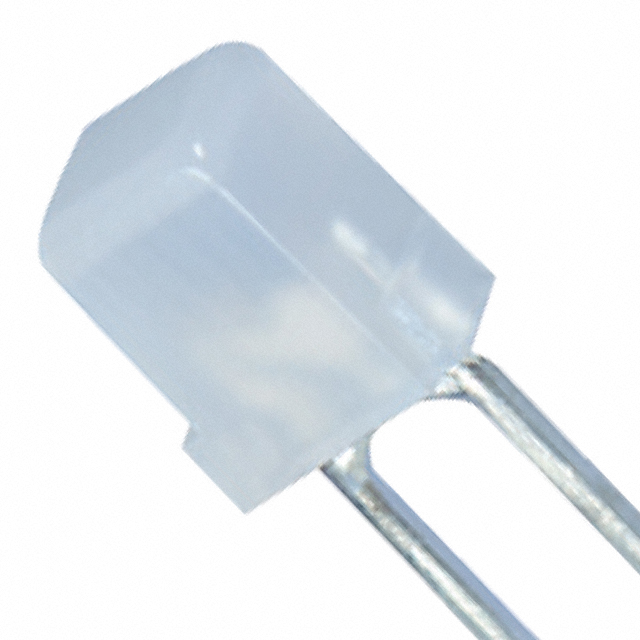

LED BLUE-GREEN DIFF ICE CUBE T/H
| Part | Configuration | Lens Transparency | Lens Style | Height (Max) [z] | Supplier Device Package | Package / Case | Lens Size | Lens Color | Viewing Angle | Voltage - Forward (Vf) (Typ) | Size / Dimension [x] | Size / Dimension [y] | Wavelength - Peak | Wavelength - Dominant | Color | Millicandela Rating | Mounting Type | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | Standard | Diffused | Square with Flat Top | 4.8 mm | ICE CUBE LED | Radial | 3 mm | White | 110 ° | 3.2 V | 3 mm | 3 mm | 505 nm | 505 nm | Blue-Green | 268 mcd | Through Hole | 20 mA |
