KWHJL531 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

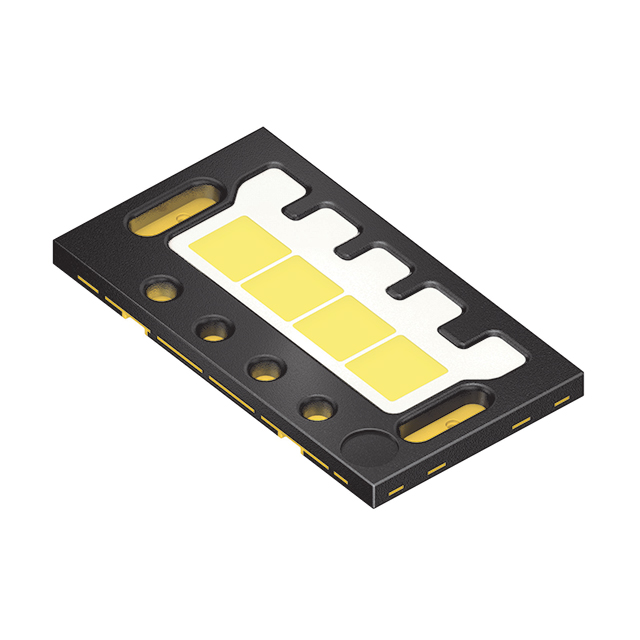

LED OSLON WHITE 7SMD
| Part | Thermal Resistance of Package | Mounting Type | Current - Max [Max] | Voltage - Forward (Vf) (Typ) | Supplier Device Package | Viewing Angle | Flux @ 25°C, Current - Test | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Current - Test | Color | Lumens/Watt @ Current - Test | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] [z] | Size / Dimension [y] | Flux @ 25°C, Current - Test [Max] | Flux @ 25°C, Current - Test [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 0.9 °C/W | Surface Mount | 1.5 A | 15.1 V | 7-SMD | 120 ° | 1745 lm | 0.148 in | 3.75 mm | 7.9 mm | 0.311 in | 1 A | White | 116 lm/W | 7-SMD No Lead | 0.49 mm | 0.019 " | |||
 ams-OSRAM USA INC. | 1 °C/W | Surface Mount | 1.5 A | 12.9 V | SMD | 120 ° | 0.148 in | 6.8 mm | 0.268 in | 1 A | White | 119 lm/W | 10-SMD No Lead | 0.49 mm | 0.019 " | 3.75 mm | 1760 lm | 1310 lm |
