895-114 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 114POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Gender	Card Type	Mounting Type	Contact Finish	Color	Contact Material	Number of Positions/Bay/Row [custom]	Pitch	Pitch	Number of Positions	Features
EDAC Inc. 895-114-540-803	Polyphenylene Sulfide (PPS)	2	Wire Wrap	125 °C	-40 C	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	Through Hole	Gold	Black	Copper Alloy	57	0.1 "	2.54 mm	114

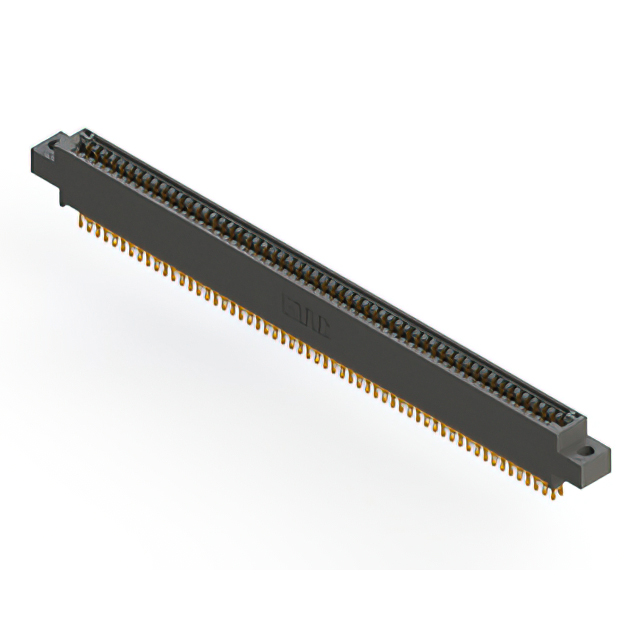

EDAC Inc. 895-114-555-804	Polyphenylene Sulfide (PPS)	2	Solder	125 °C	-40 C	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever		0.156 "	3.96 mm	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	Board Edge Straddle Mount	Gold	Black	Copper Alloy	57	0.1 "	2.54 mm	114	Card Extender
EDAC Inc. 895-114-523-508	Polyphenylene Sulfide (PPS)	2	Solder	125 °C	-40 C	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	4-40 Threaded Insert Top Mount Opening			0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	Through Hole	Gold	Black	Copper Alloy	57	0.1 "	2.54 mm	114
EDAC Inc. 895-114-559-207	Polyphenylene Sulfide (PPS)	2	Solder	125 °C	-40 C	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Flush Mount M3 Threaded Insert Top Opening			0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	Right Angle Through Hole	Gold	Black	Copper Alloy	57	0.1 "	2.54 mm	114
EDAC Inc. 895-114-524-203	Polyphenylene Sulfide (PPS)	2	Solder	125 °C	-40 C	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Floating Bobbin Flush Mount	0.116 "	2.95 mm	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	Through Hole	Gold	Black	Copper Alloy	57	0.1 "	2.54 mm	114

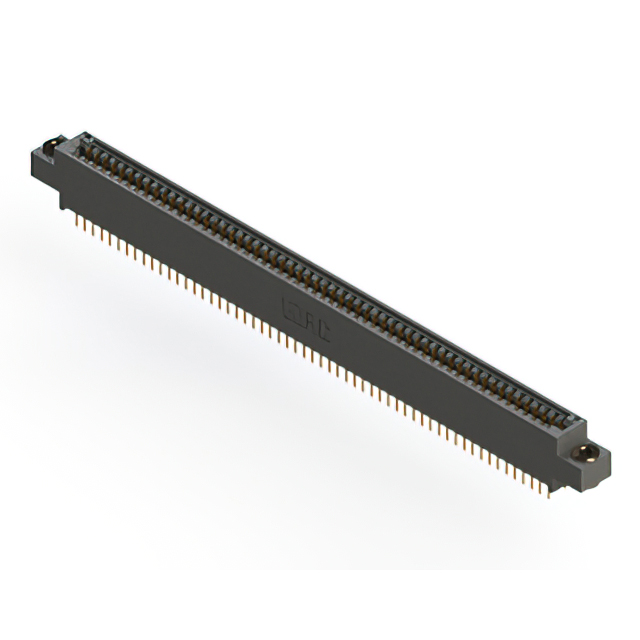

EDAC Inc. 895-114-524-803	Polyphenylene Sulfide (PPS)	2	Solder	125 °C	-40 C	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	Through Hole	Gold	Black	Copper Alloy	57	0.1 "	2.54 mm	114
EDAC Inc. 895-114-540-201	Polyphenylene Sulfide (PPS)	2	Wire Wrap	125 °C	-40 C	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever				0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	Through Hole	Gold	Black	Copper Alloy	57	0.1 "	2.54 mm	114

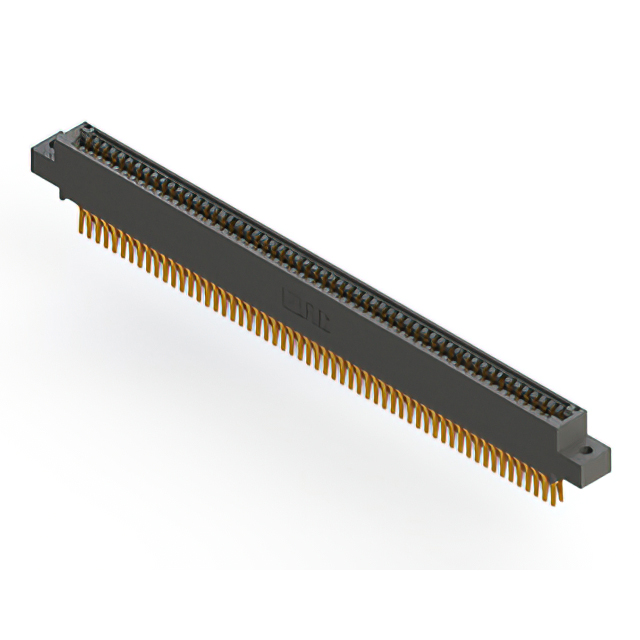

EDAC Inc. 895-114-560-502	Polyphenylene Sulfide (PPS)	2	Solder	125 °C	-40 C	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever		0.128 "	3.25 mm	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	Board Edge Straddle Mount	Gold	Black	Copper Alloy	57	0.1 "	2.54 mm	114	Card Extender
EDAC Inc. 895-114-540-812	Polyphenylene Sulfide (PPS)	2	Wire Wrap	125 °C	-40 C	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Side Mount Opening Unthreaded	0.128 "	3.25 mm	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	Through Hole	Gold	Black	Copper Alloy	57	0.1 "	2.54 mm	114
EDAC Inc. 895-114-559-503	Polyphenylene Sulfide (PPS)	2	Solder	125 °C	-40 C	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.25 Ám	10 Áin	Dual	Female	Non Specified - Dual Edge	Right Angle Through Hole	Gold	Black	Copper Alloy	57	0.1 "	2.54 mm	114
